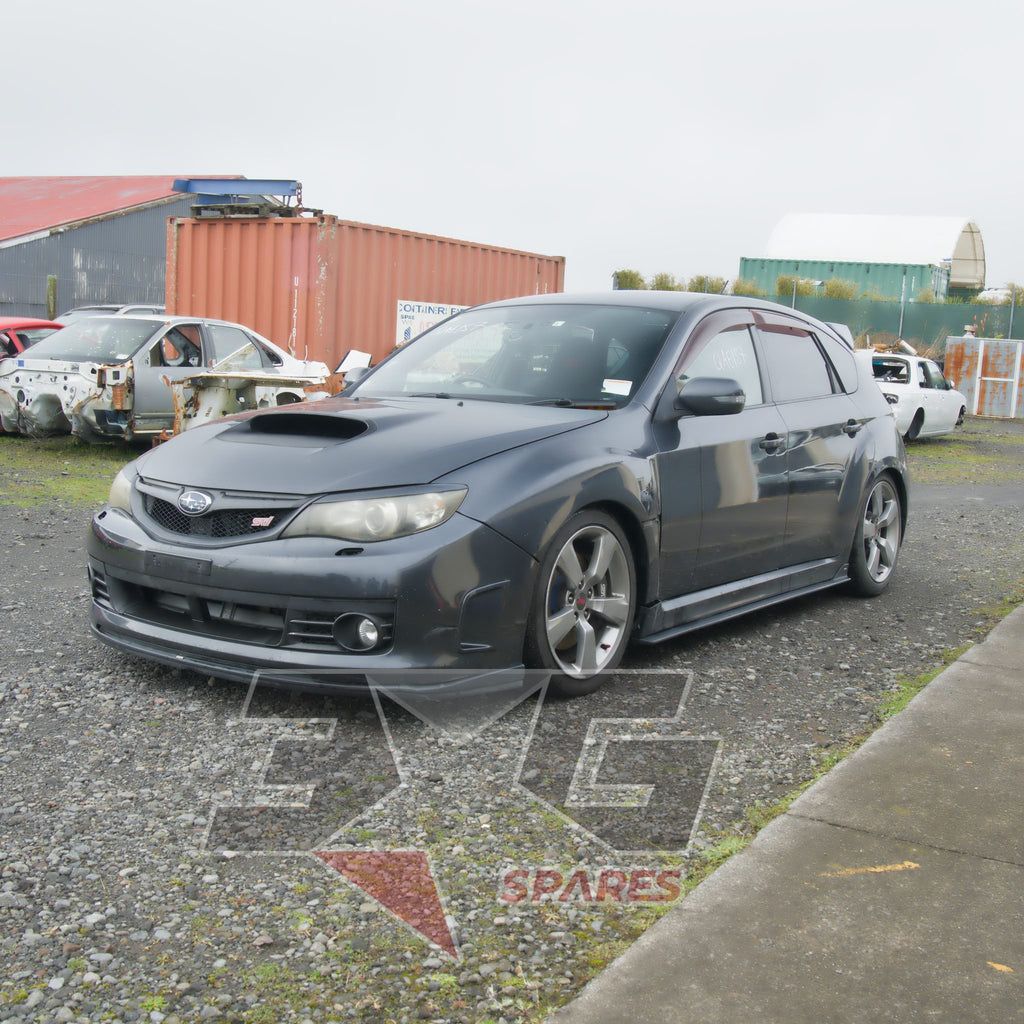

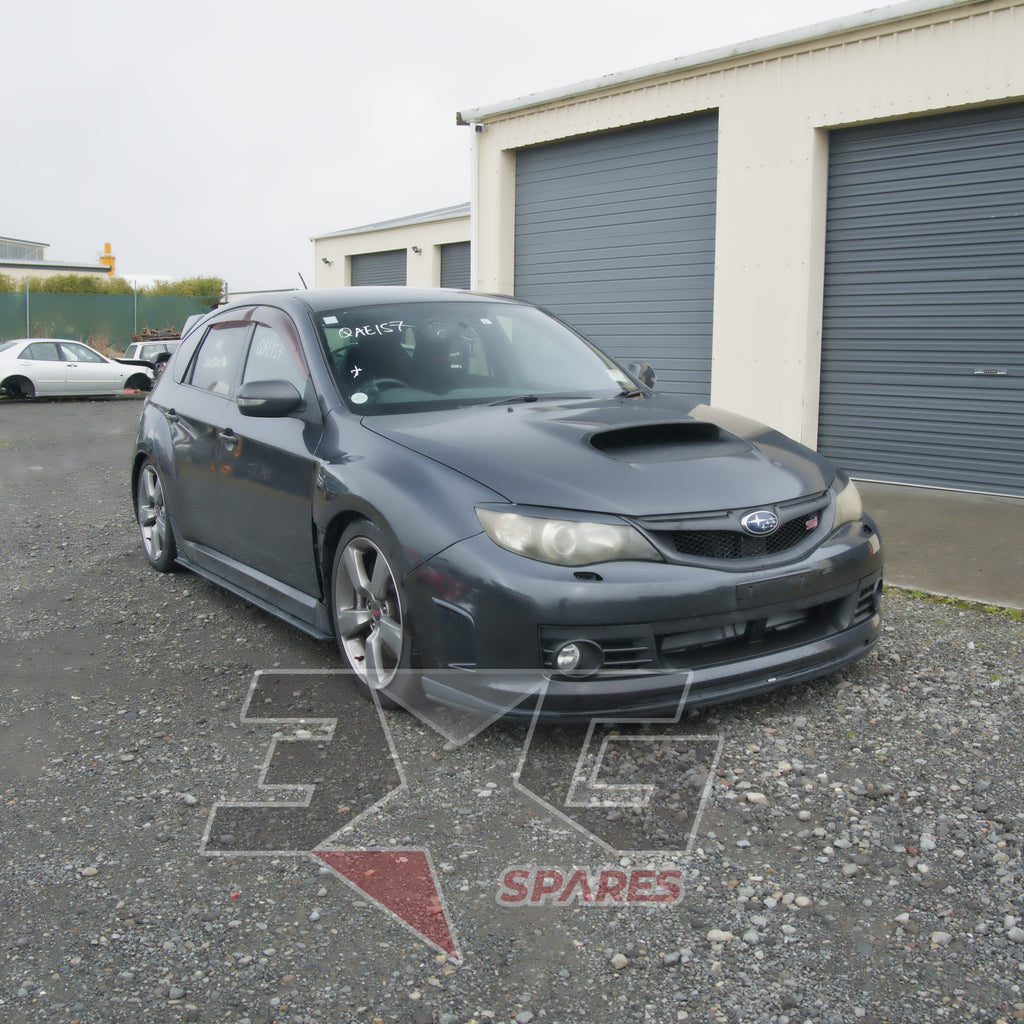

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front RH quarter 2009-2014 - 3GSpares NZ

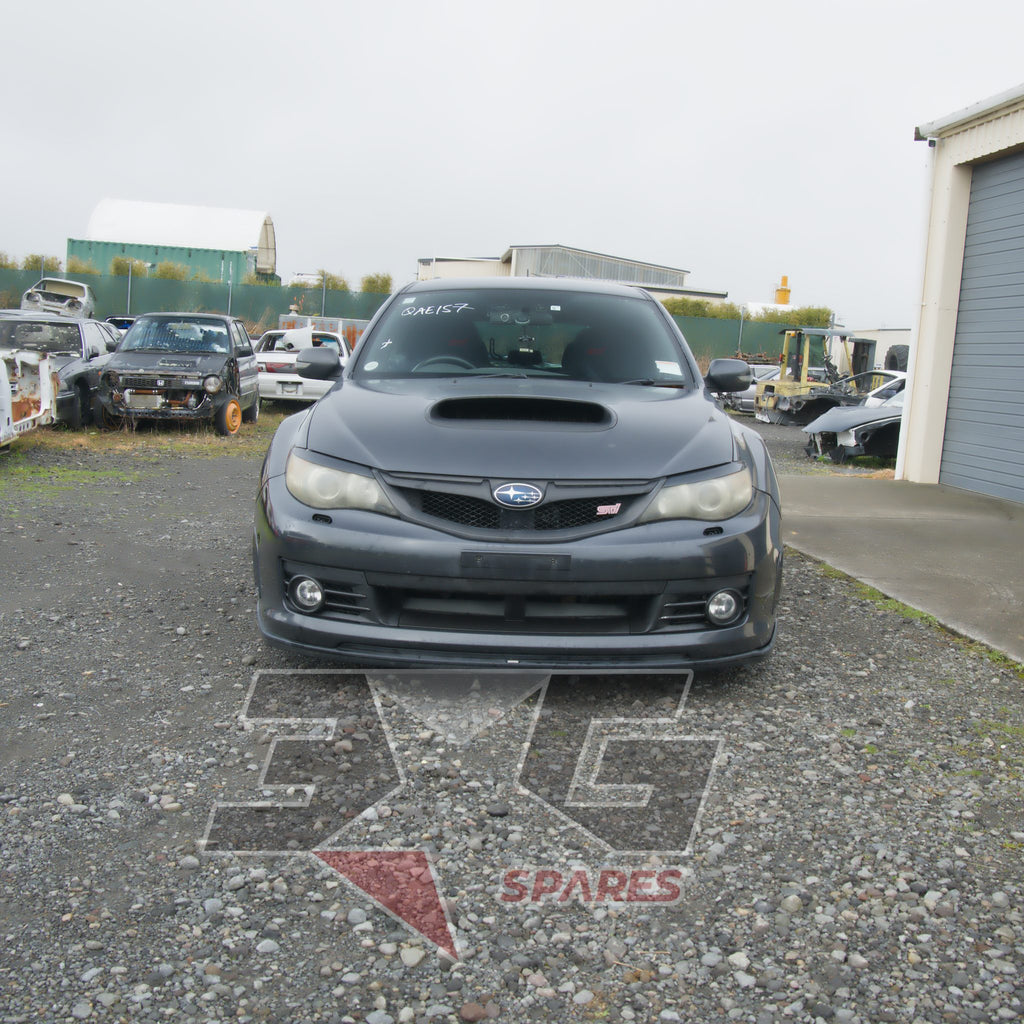

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front straight 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front LH quarter 2009-2014 - 3GSpares NZ

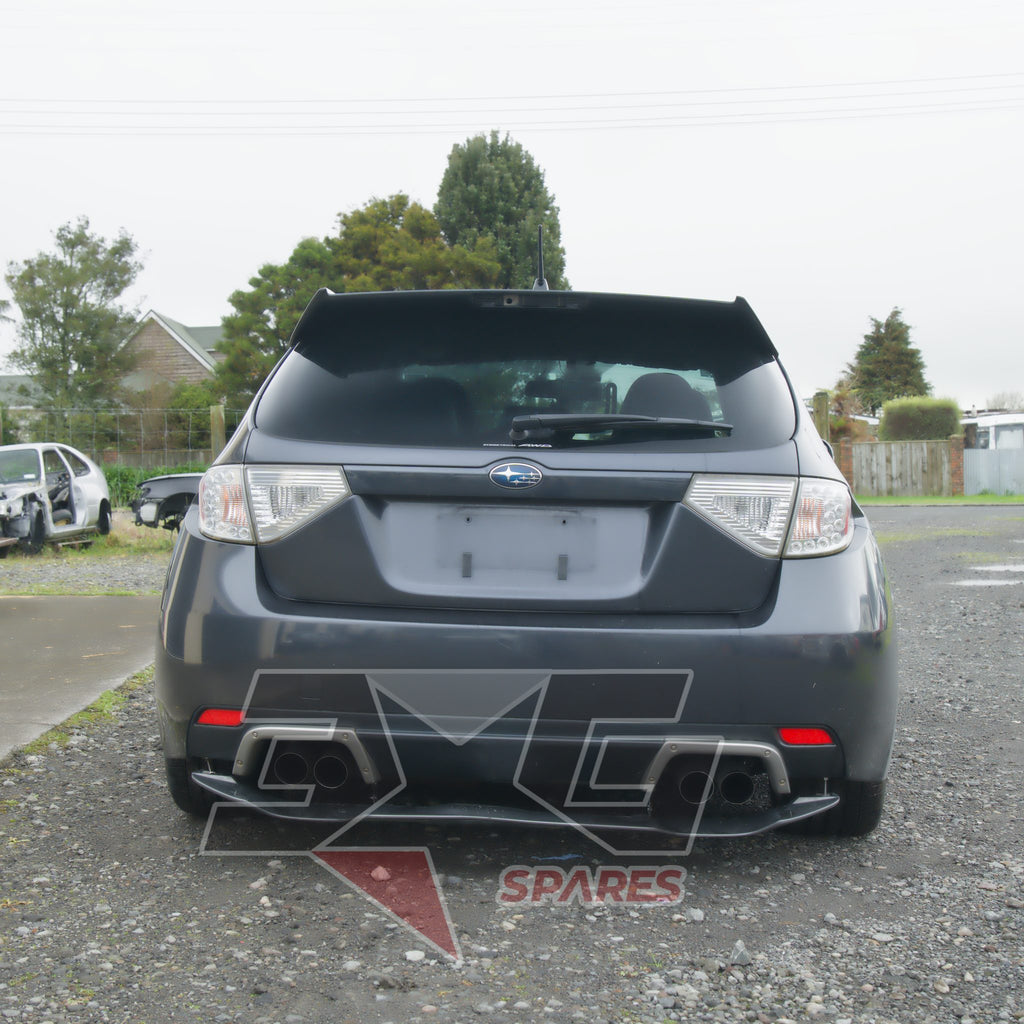

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line rear straight 2009-2014 - 3GSpares NZ

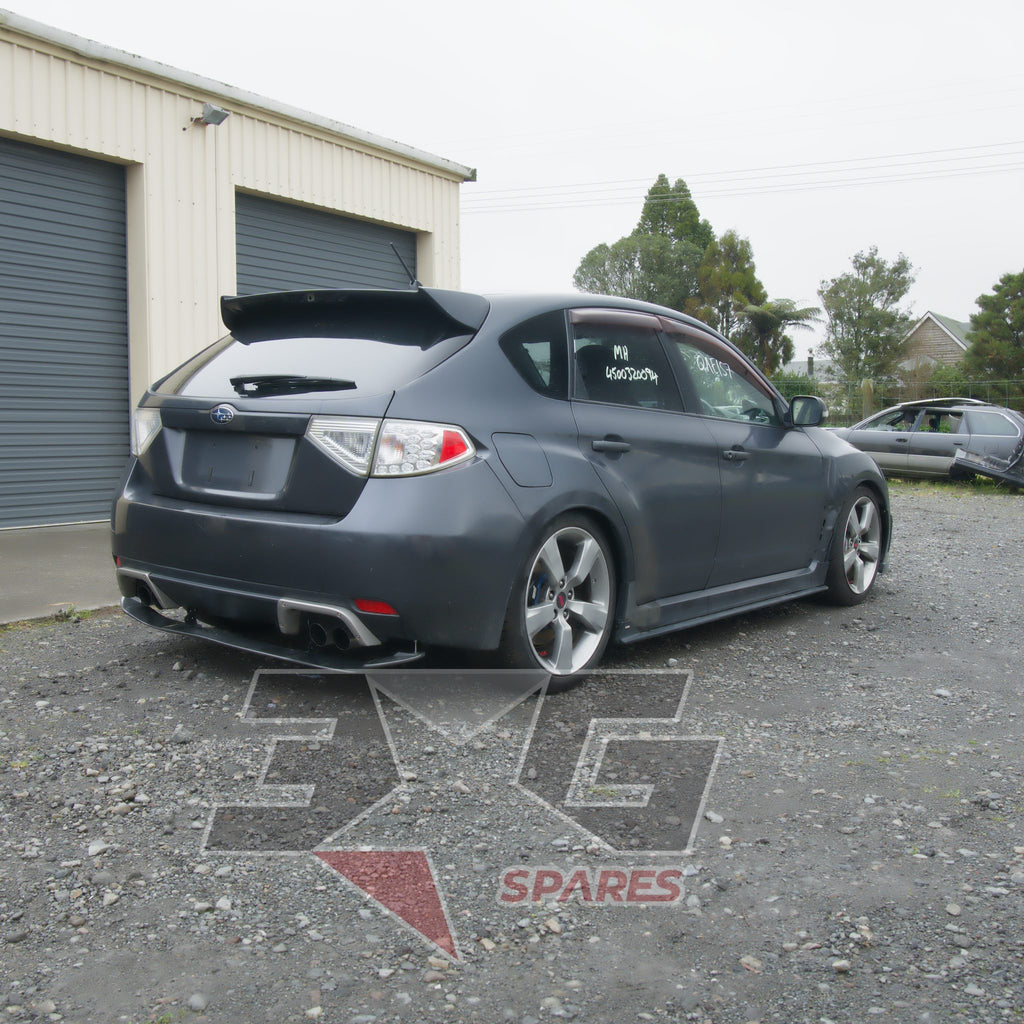

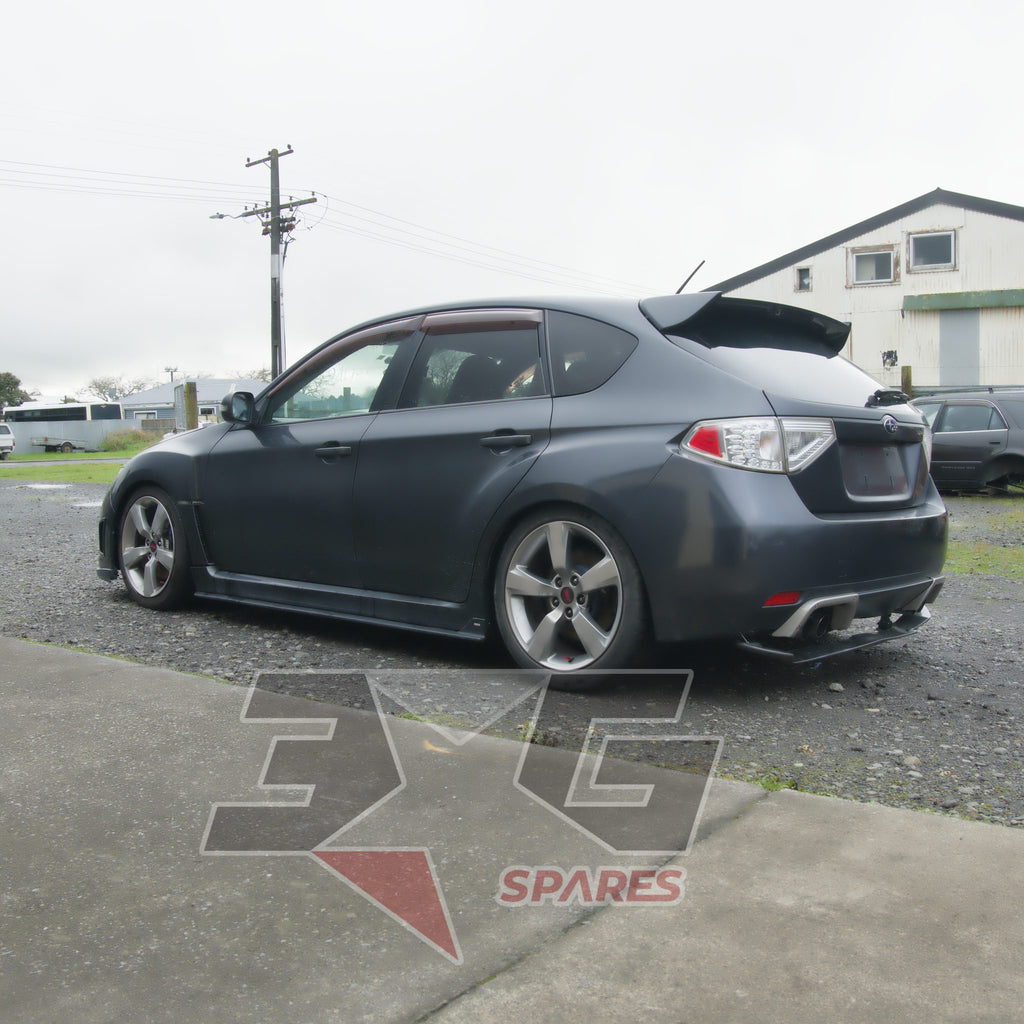

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line rear RH quarter 2009-2014 - 3GSpares NZ

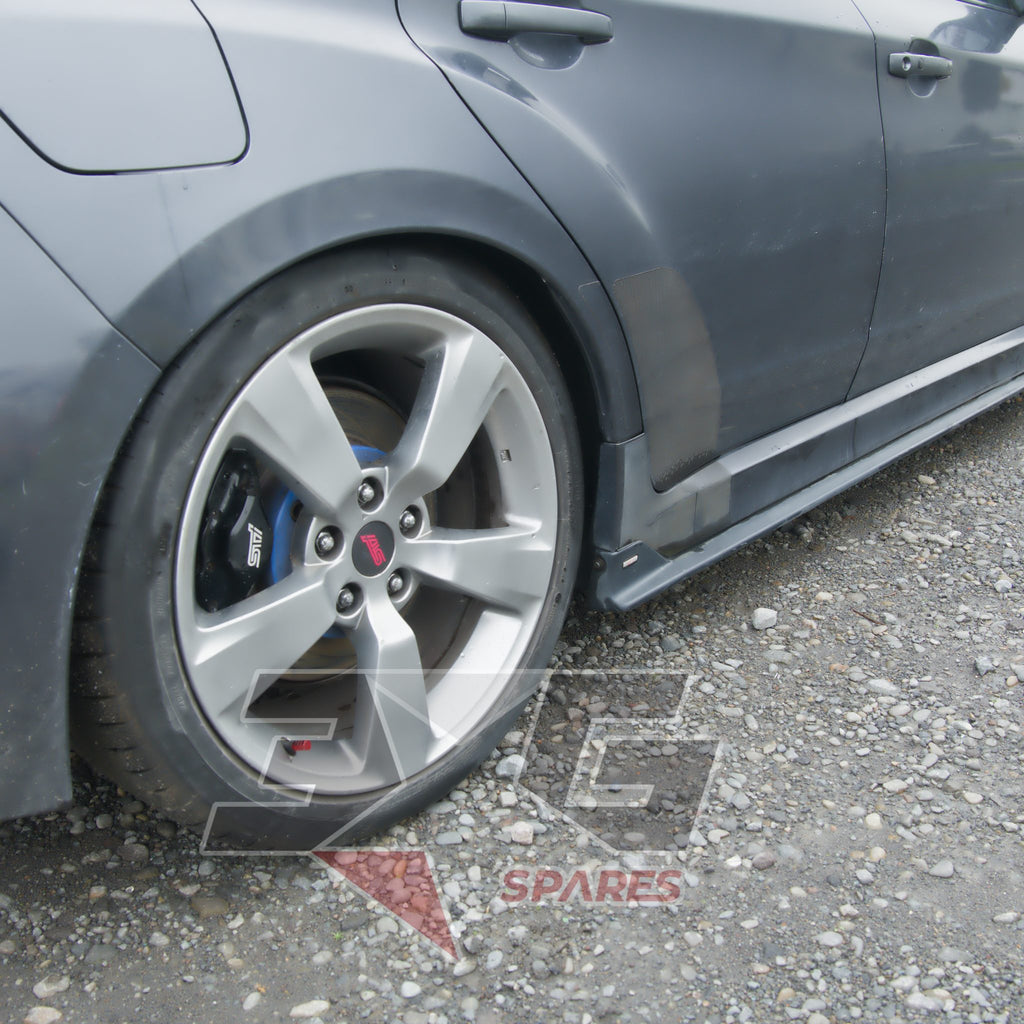

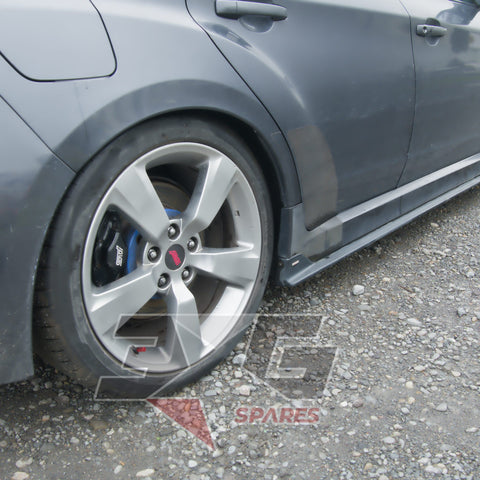

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line wheel and lower side detail 2009-2014 - 3GSpares NZ

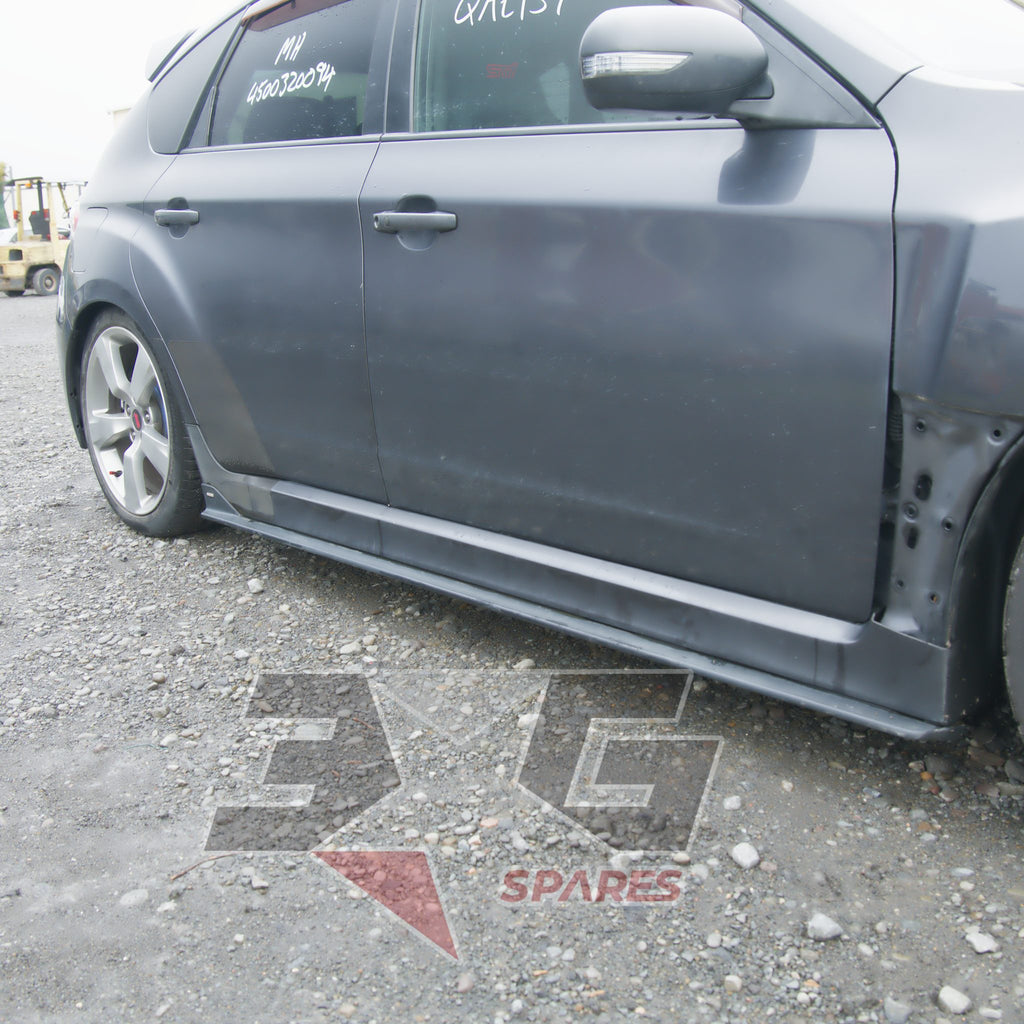

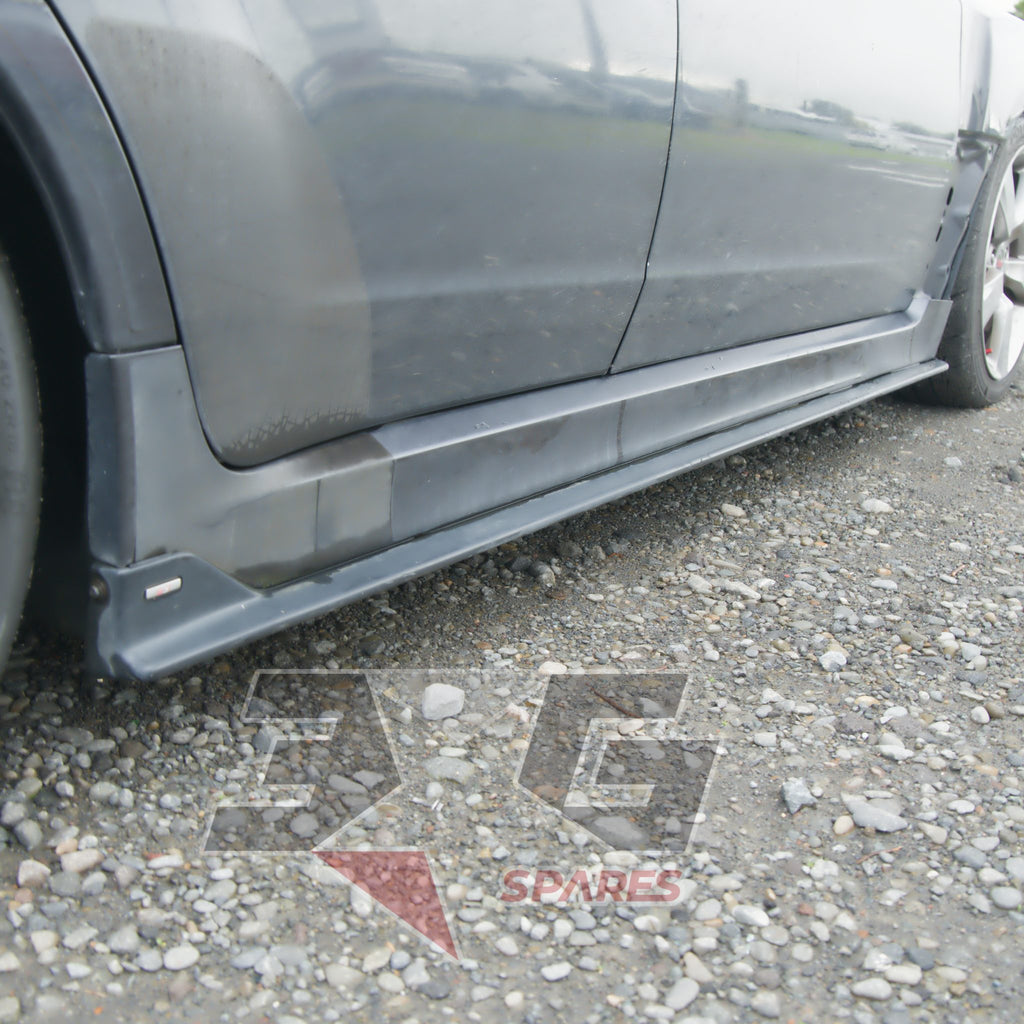

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line side skirt rocker panel detail 2009-2014 - 3GSpares NZ

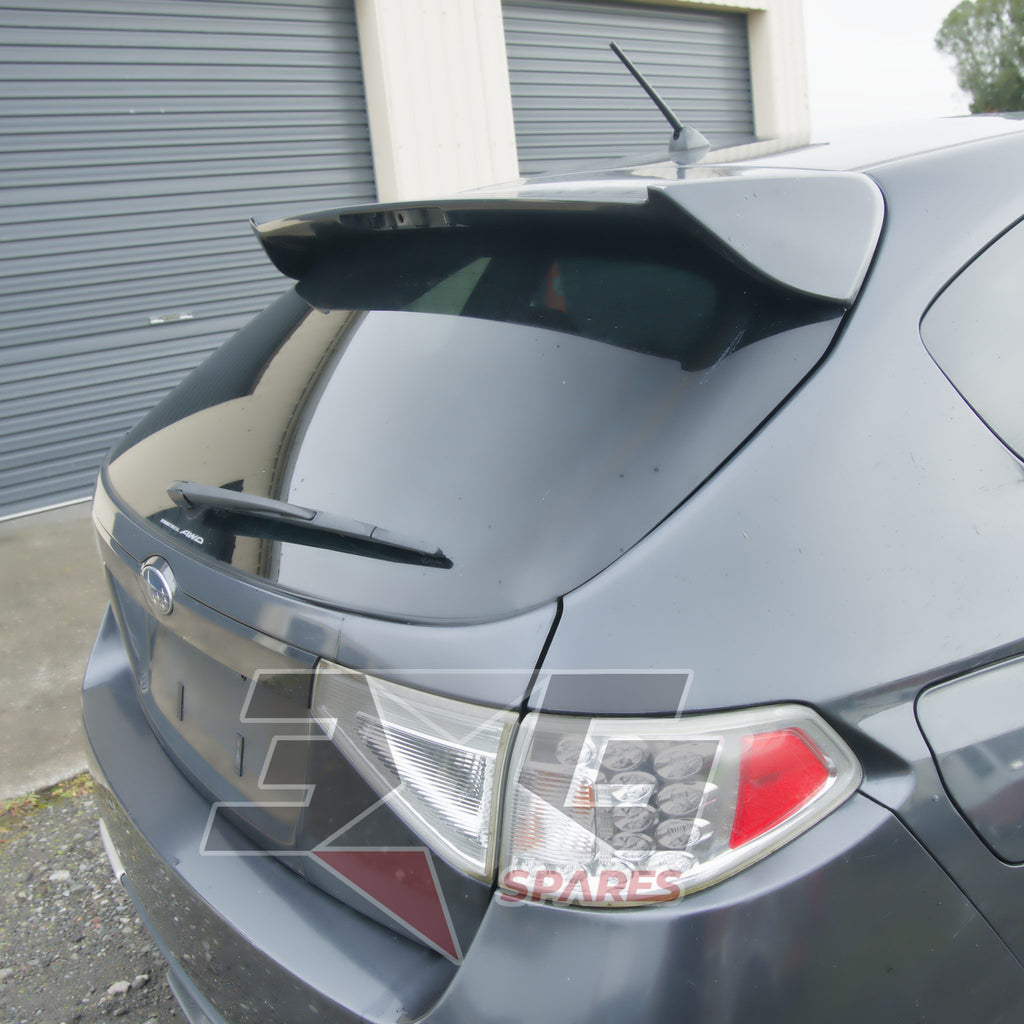

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line rear spoiler hatch 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line taillights rear 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front grille STi badge detail 2009-2014 - 3GSpares NZ

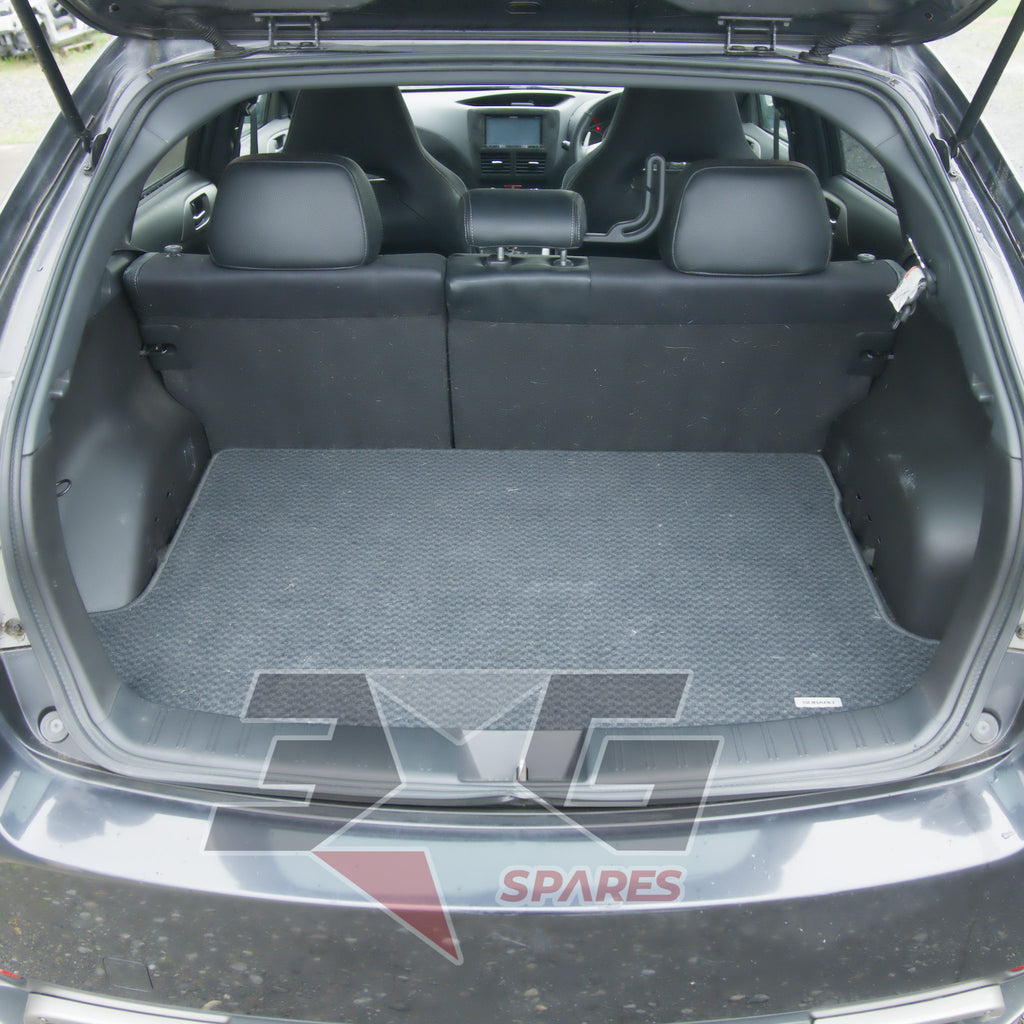

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line boot trunk load area interior 2009-2014 - 3GSpares NZ

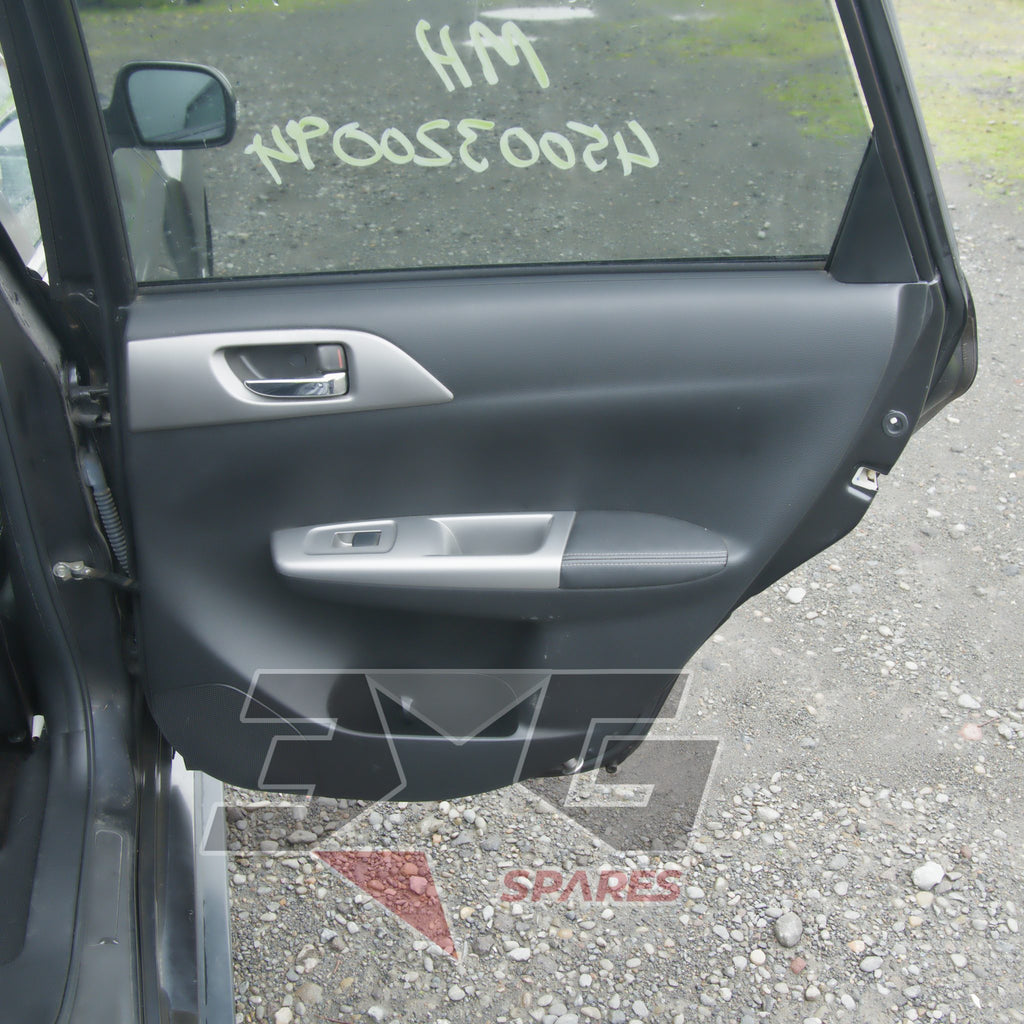

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line door card interior trim 2009-2014 - 3GSpares NZ

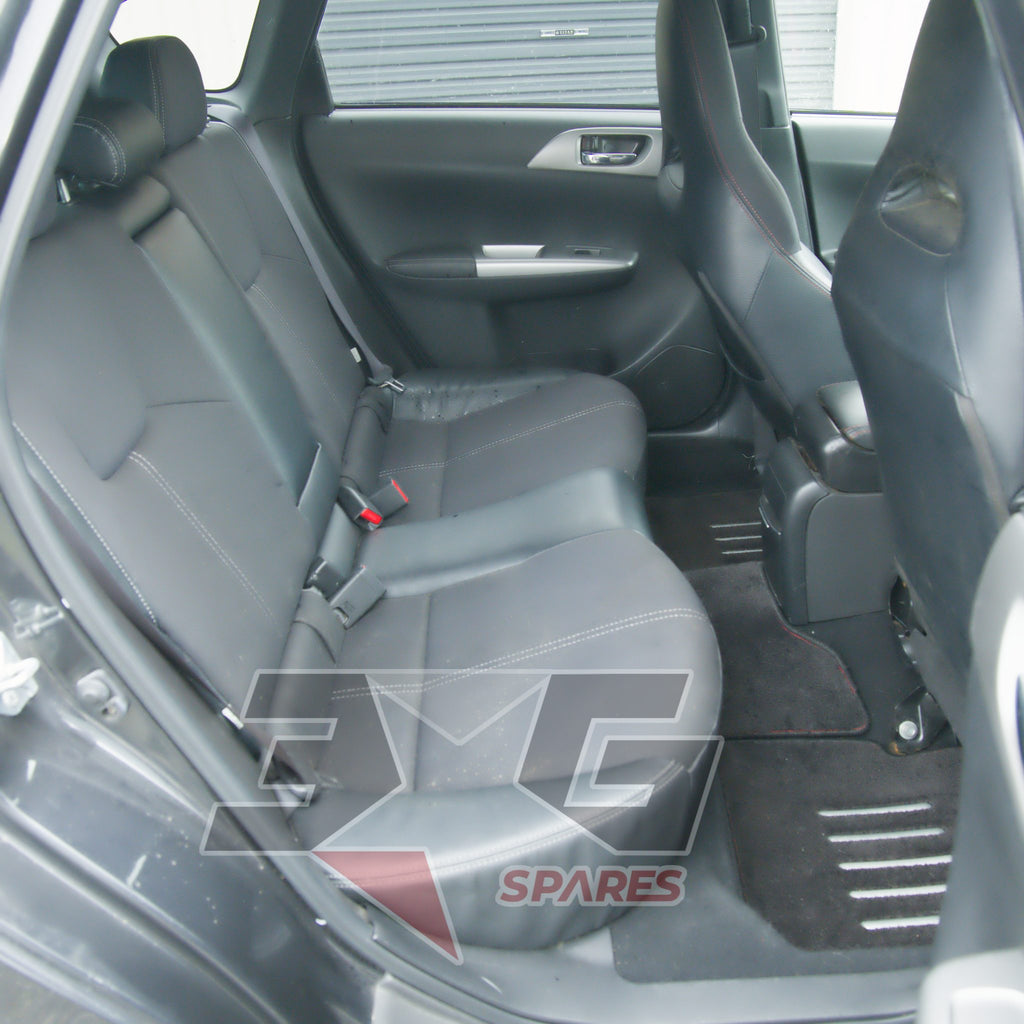

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line rear seats interior 2009-2014 - 3GSpares NZ

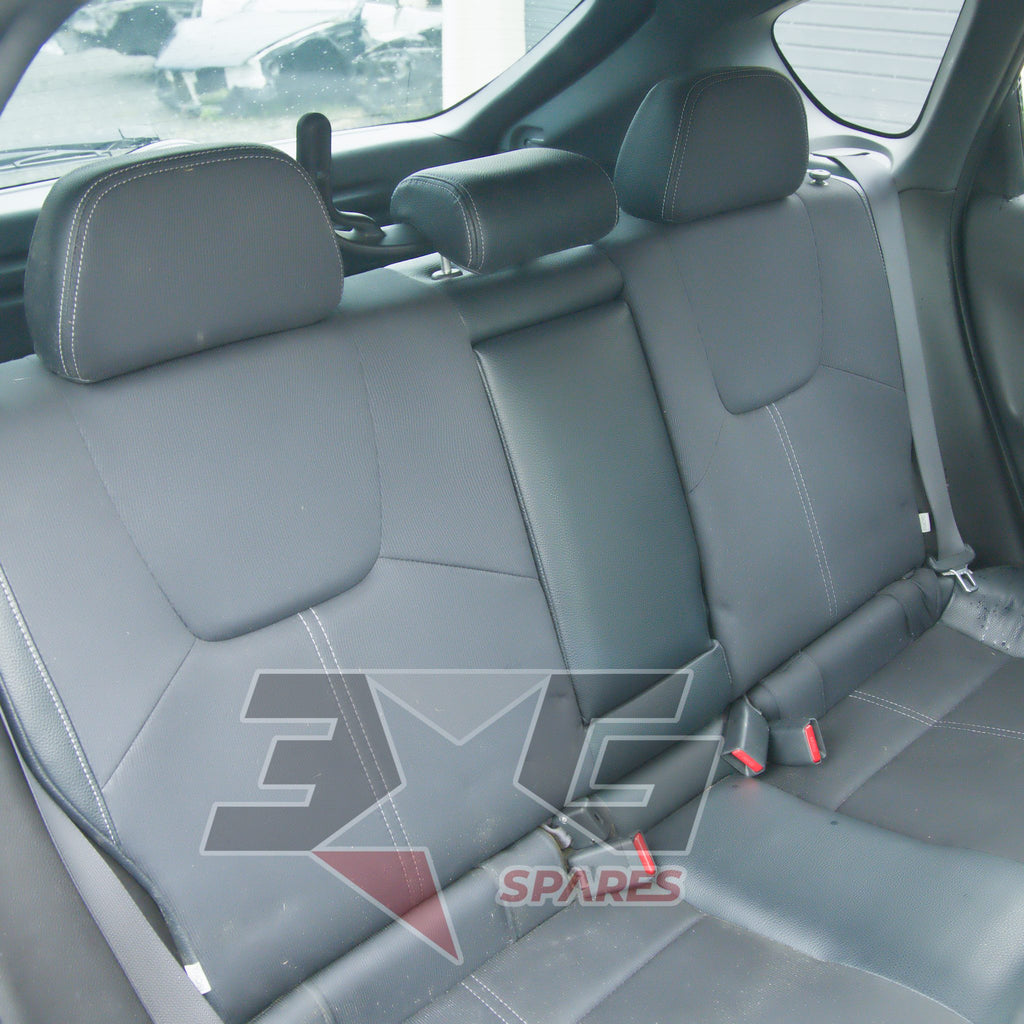

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line rear seat bench and backrest 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line floor mat OEM carpet option 2009-2014 - 3GSpares NZ

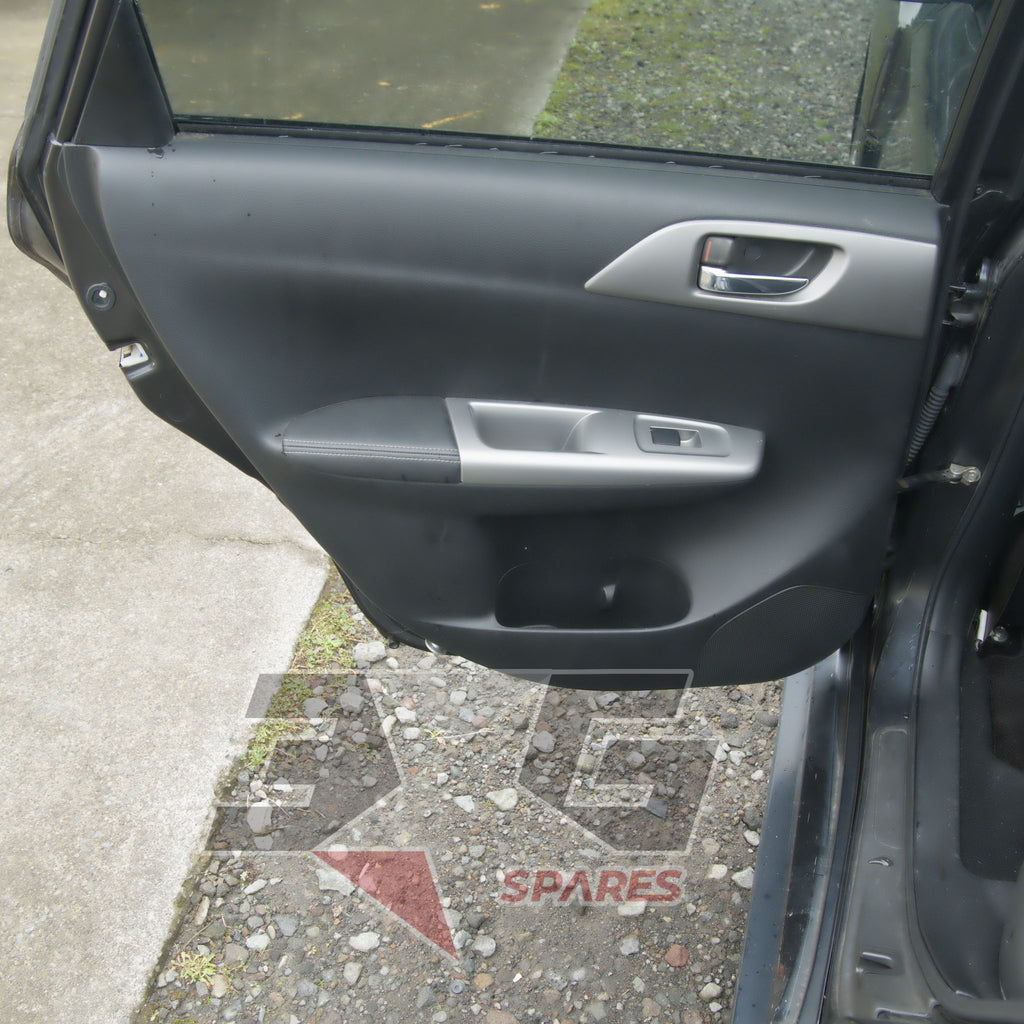

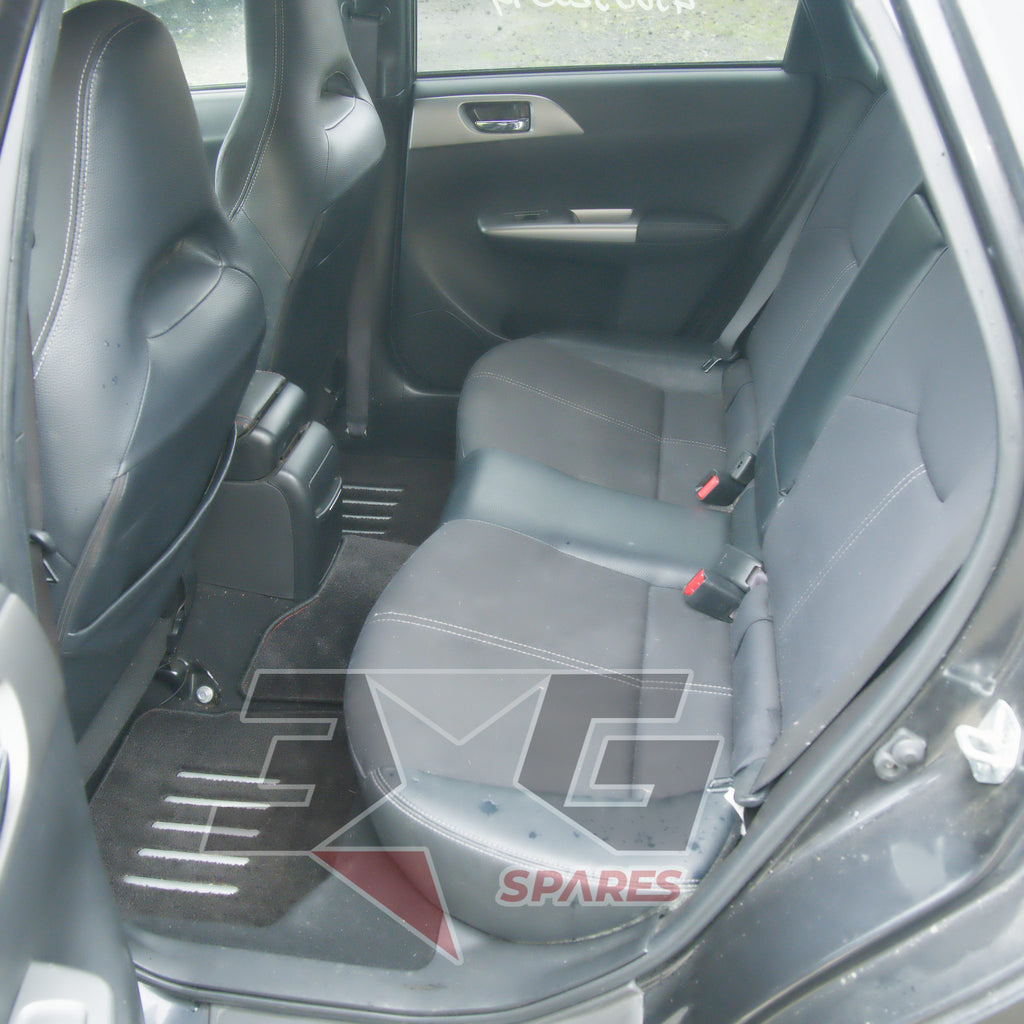

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line rear interior seats door card 2009-2014 - 3GSpares NZ

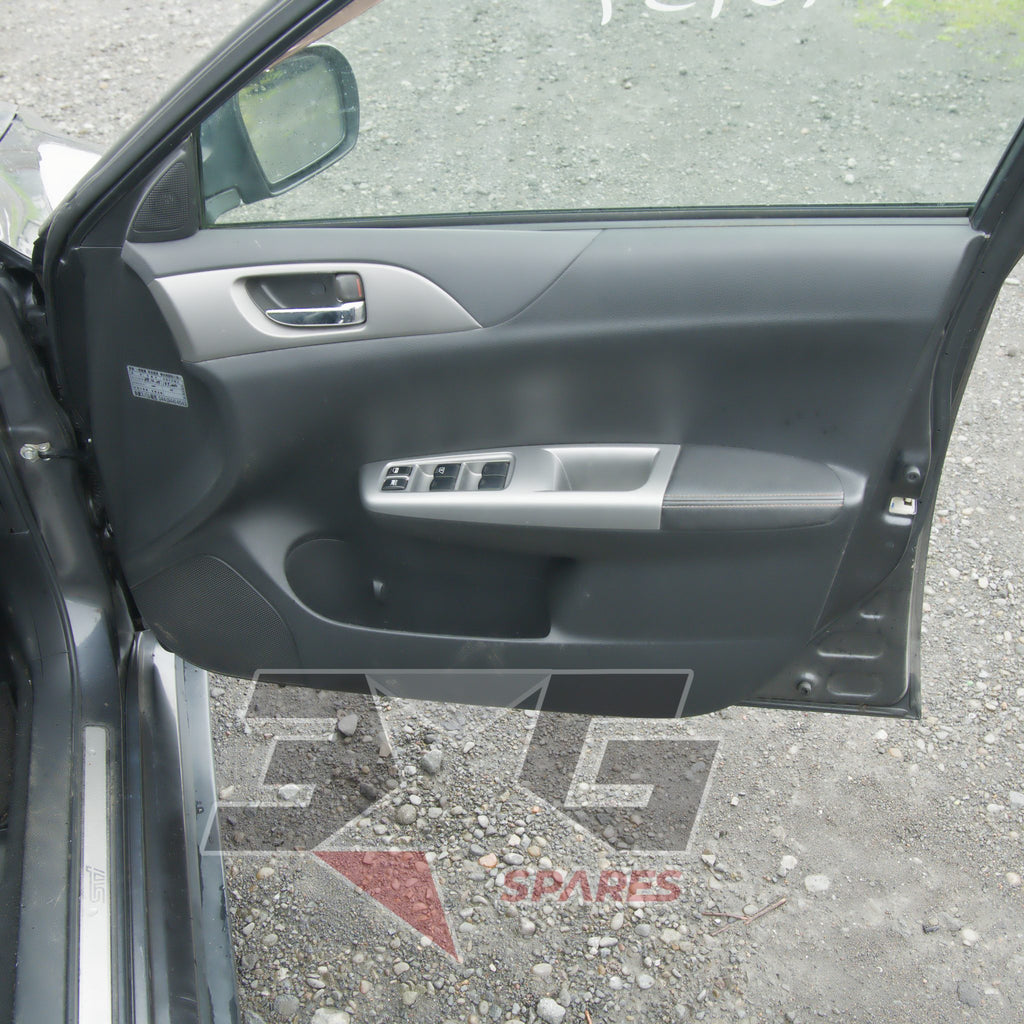

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line interior front door card detail 2009-2014 - 3GSpares NZ

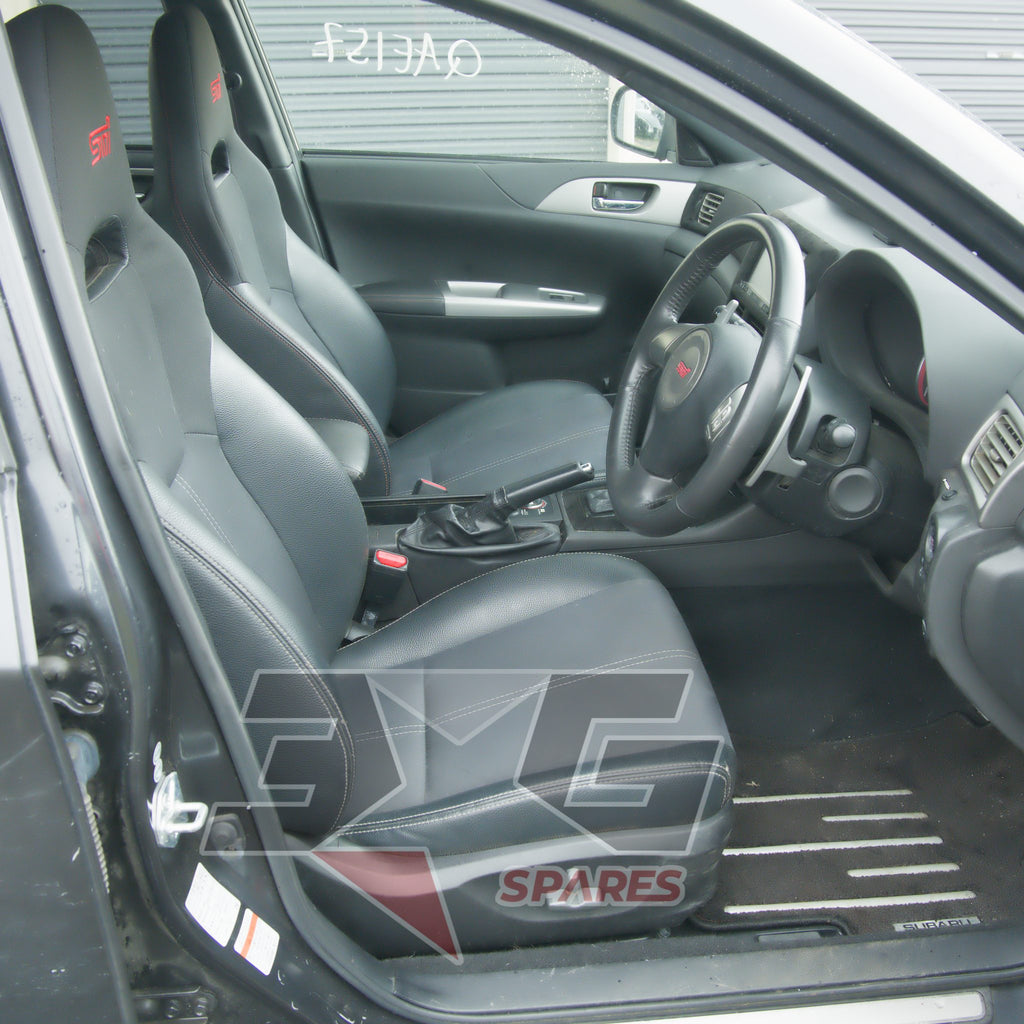

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line interior front seats centre console 2009-2014 - 3GSpares NZ

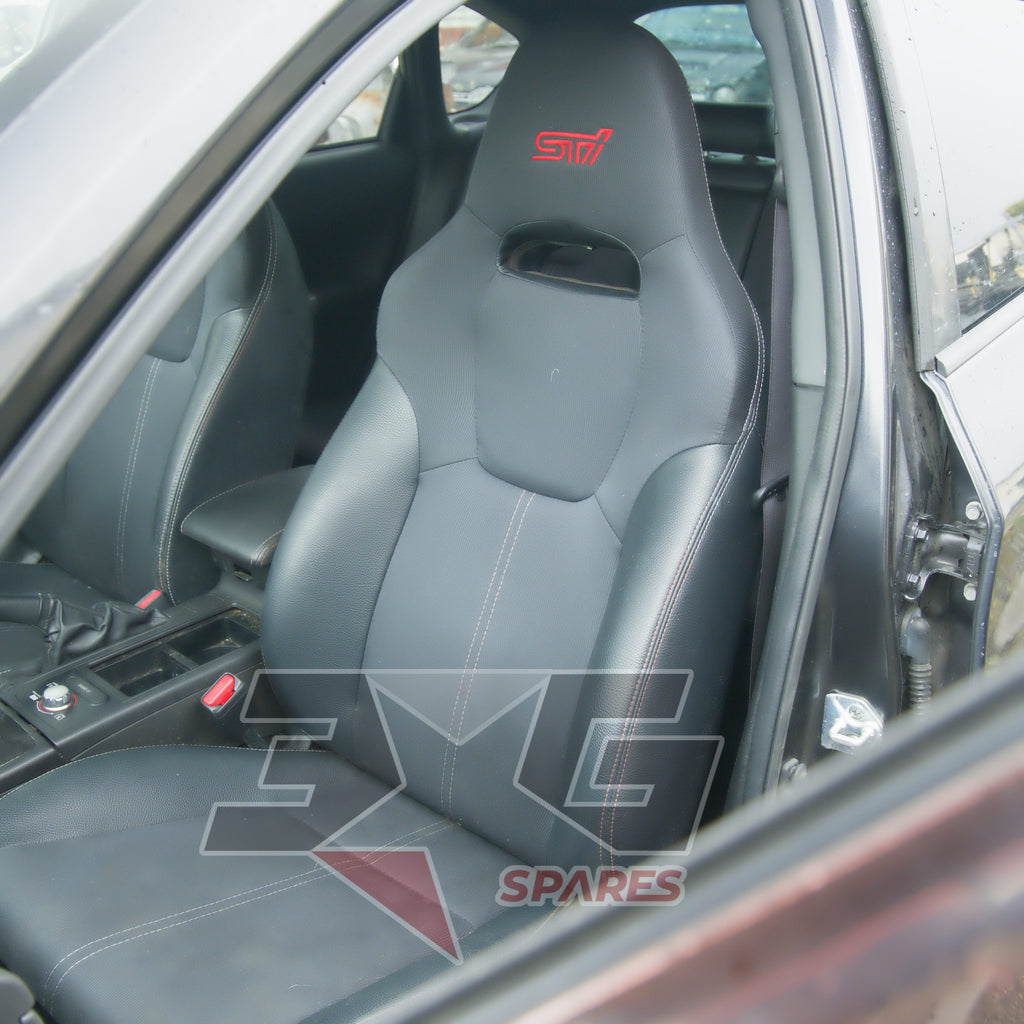

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front seat half leather upholstery 2009-2014 - 3GSpares NZ

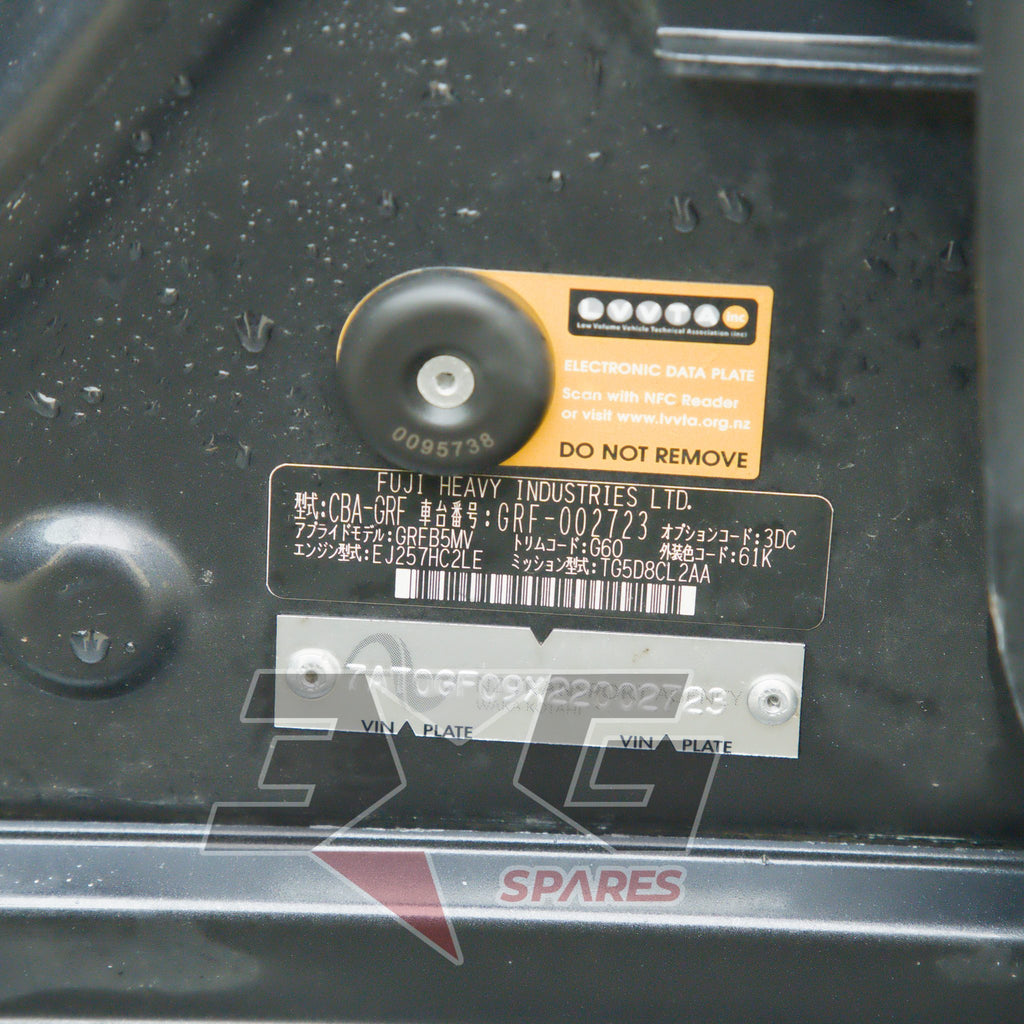

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line build plate compliance label GRF-002723 2009-2014 - 3GSpares NZ

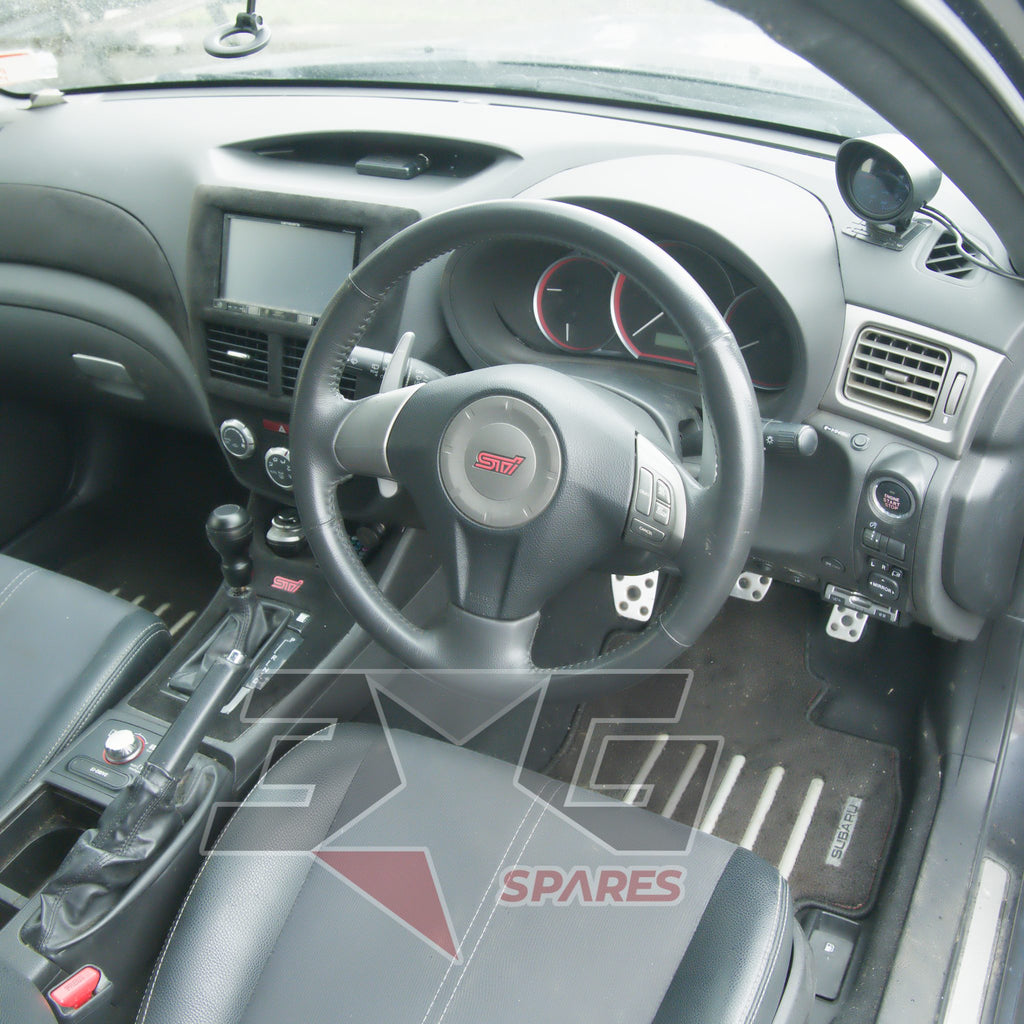

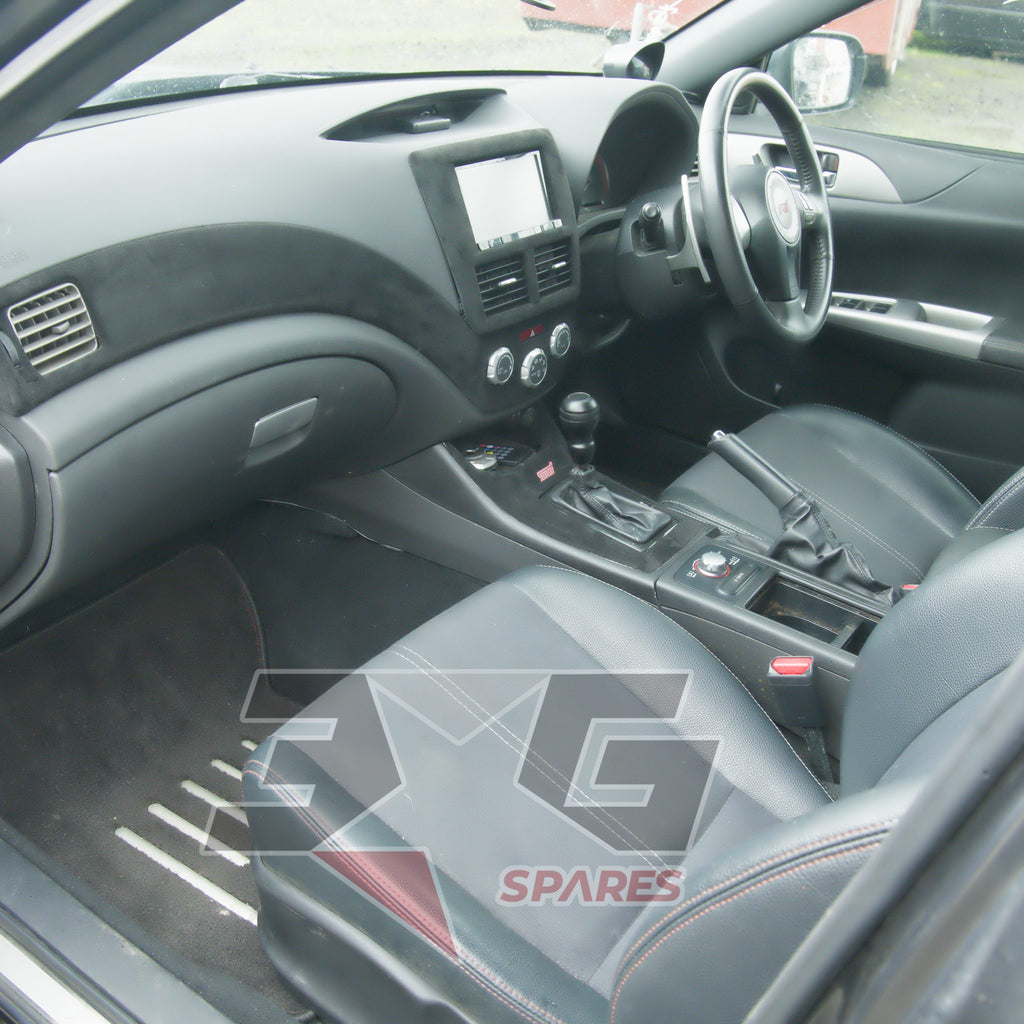

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line dashboard steering wheel RH interior 2009-2014 - 3GSpares NZ

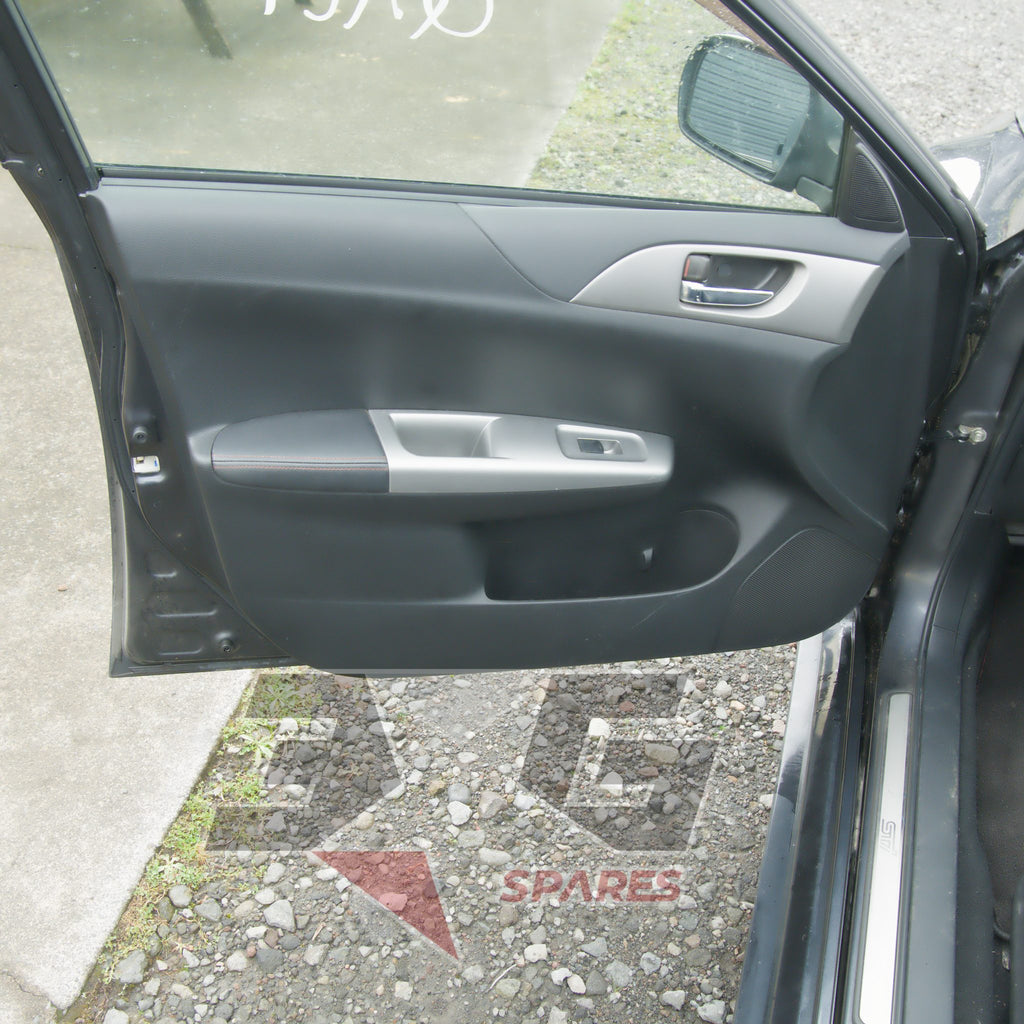

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line interior front door card trim panel 2009-2014 - 3GSpares NZ

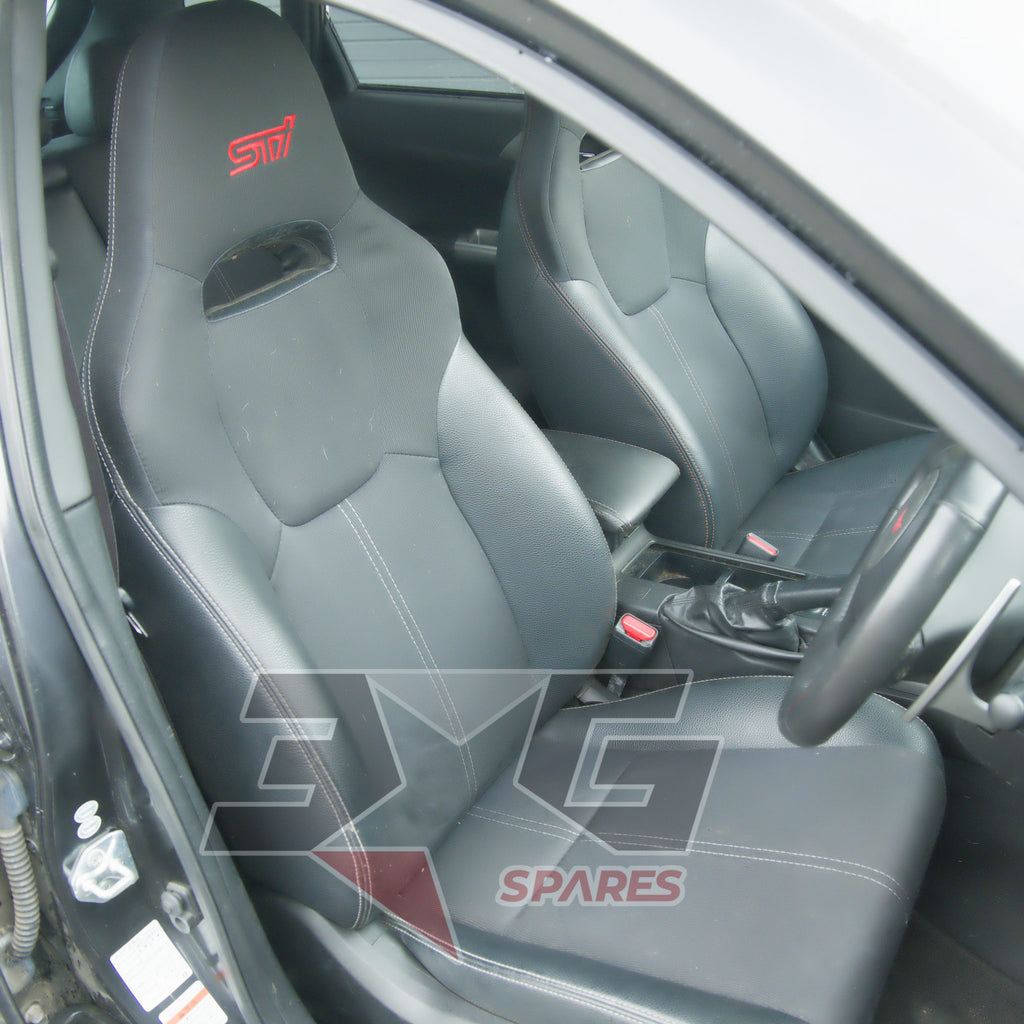

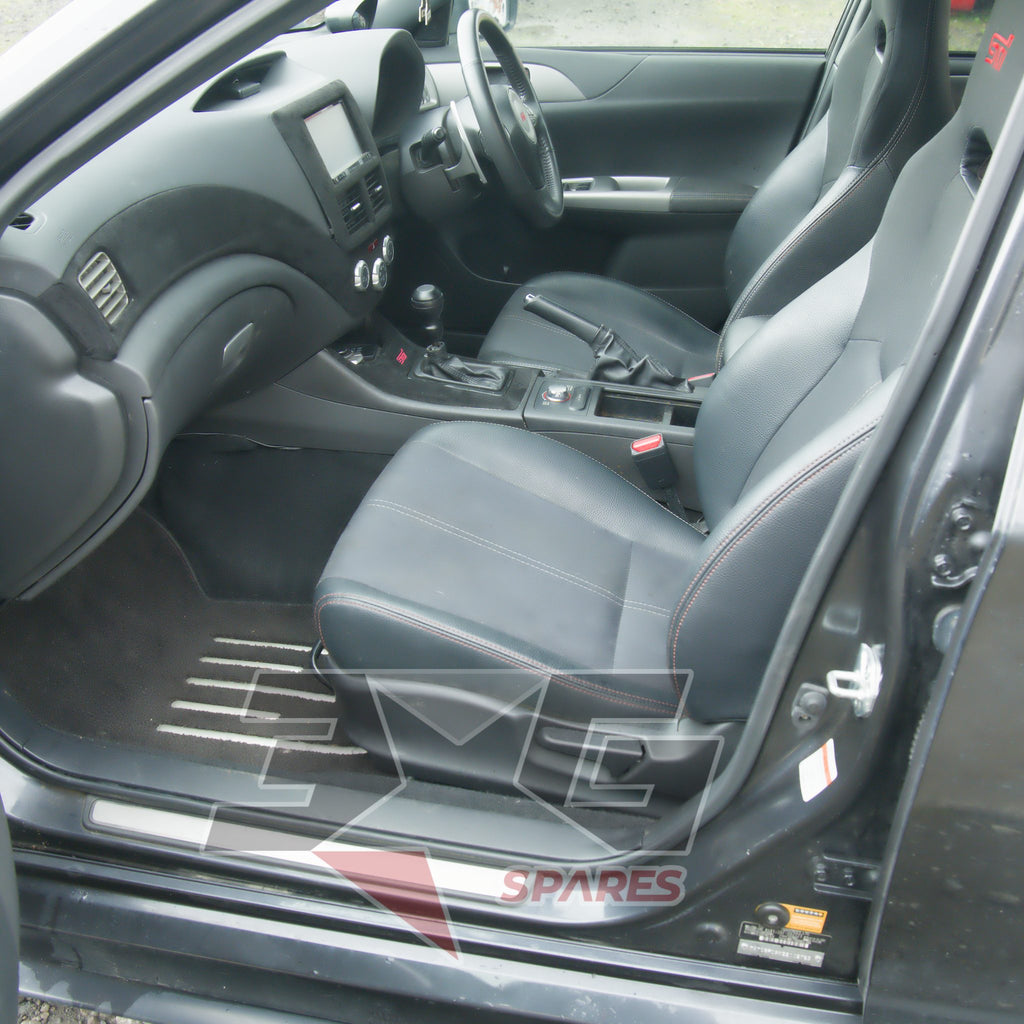

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front seat interior from door aperture 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line front seat half leather close detail 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line STi steering wheel dashboard AT cluster 2009-2014 - 3GSpares NZ

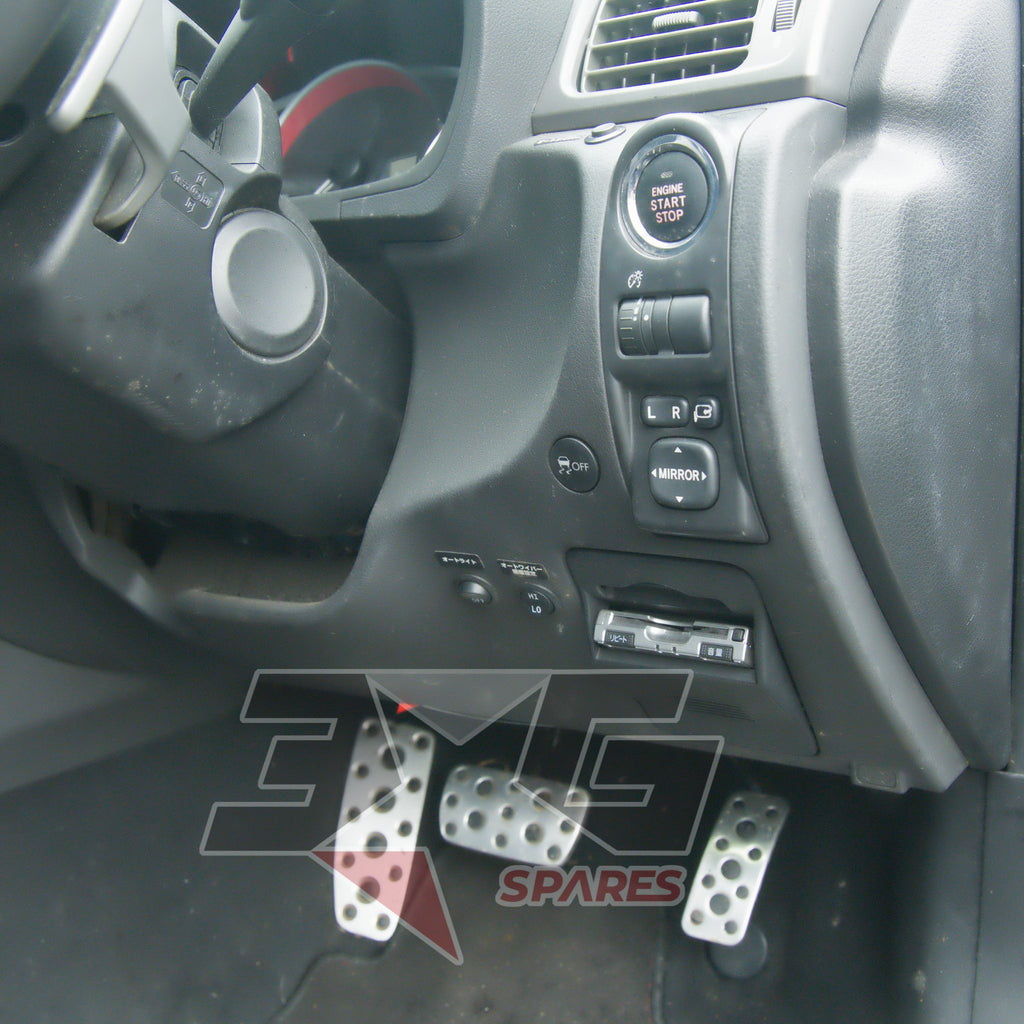

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line interior controls switches 2009-2014 - 3GSpares NZ

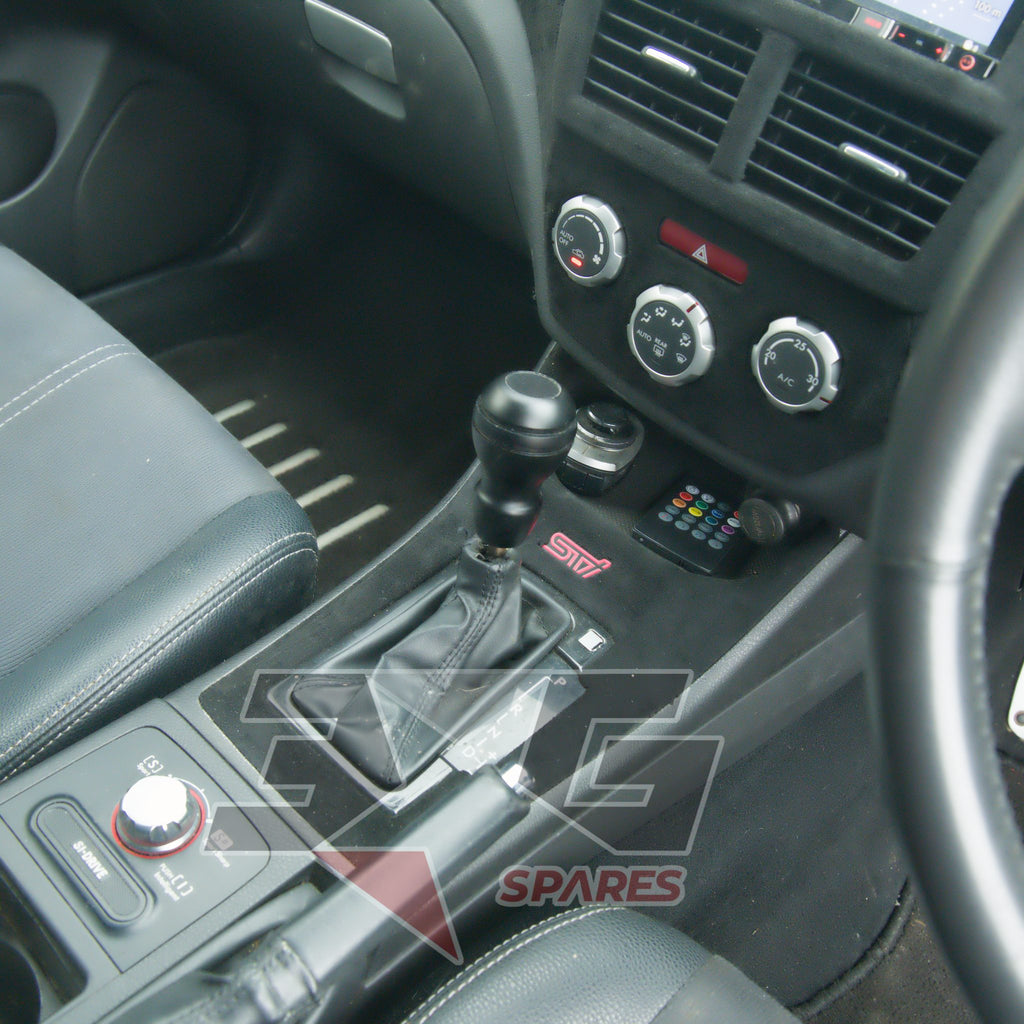

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line automatic gear selector console detail 2009-2014 - 3GSpares NZ

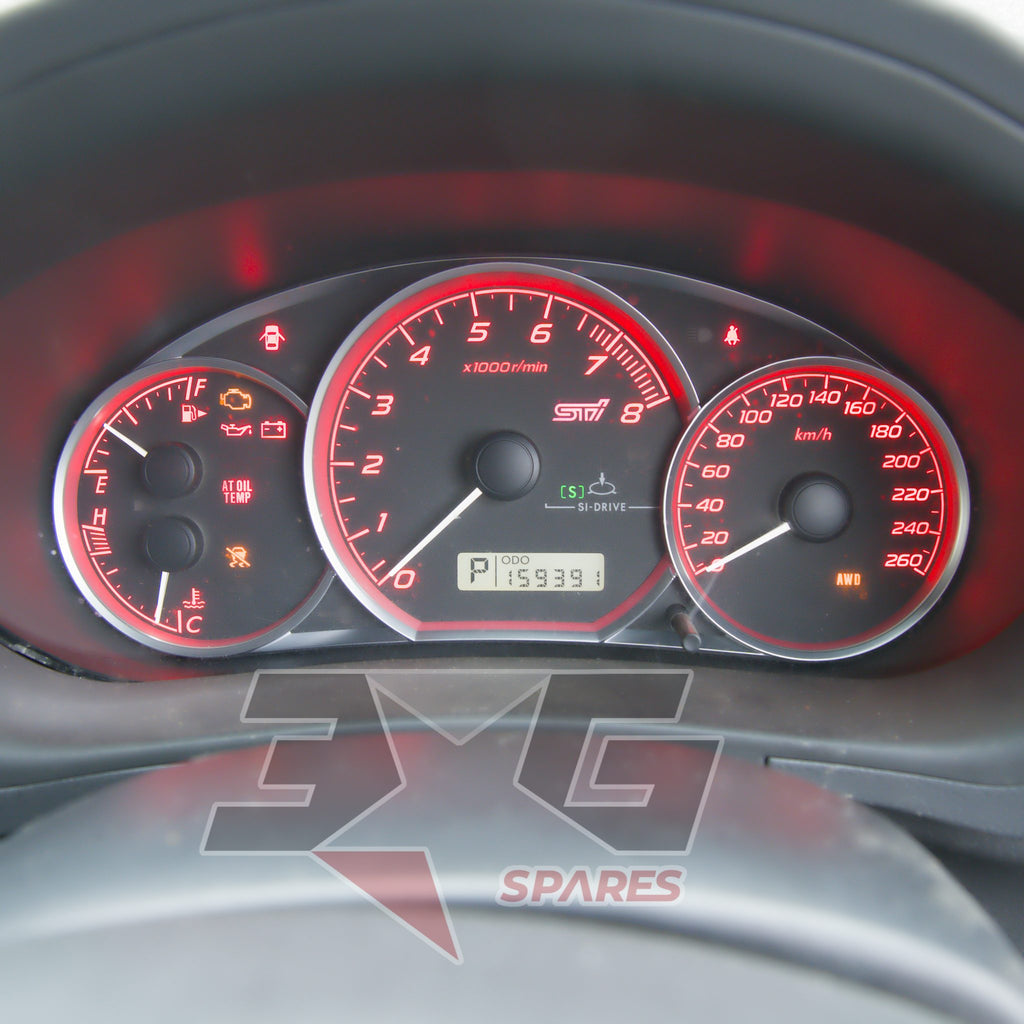

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line instrument cluster gauges illuminated 2009-2014 - 3GSpares NZ

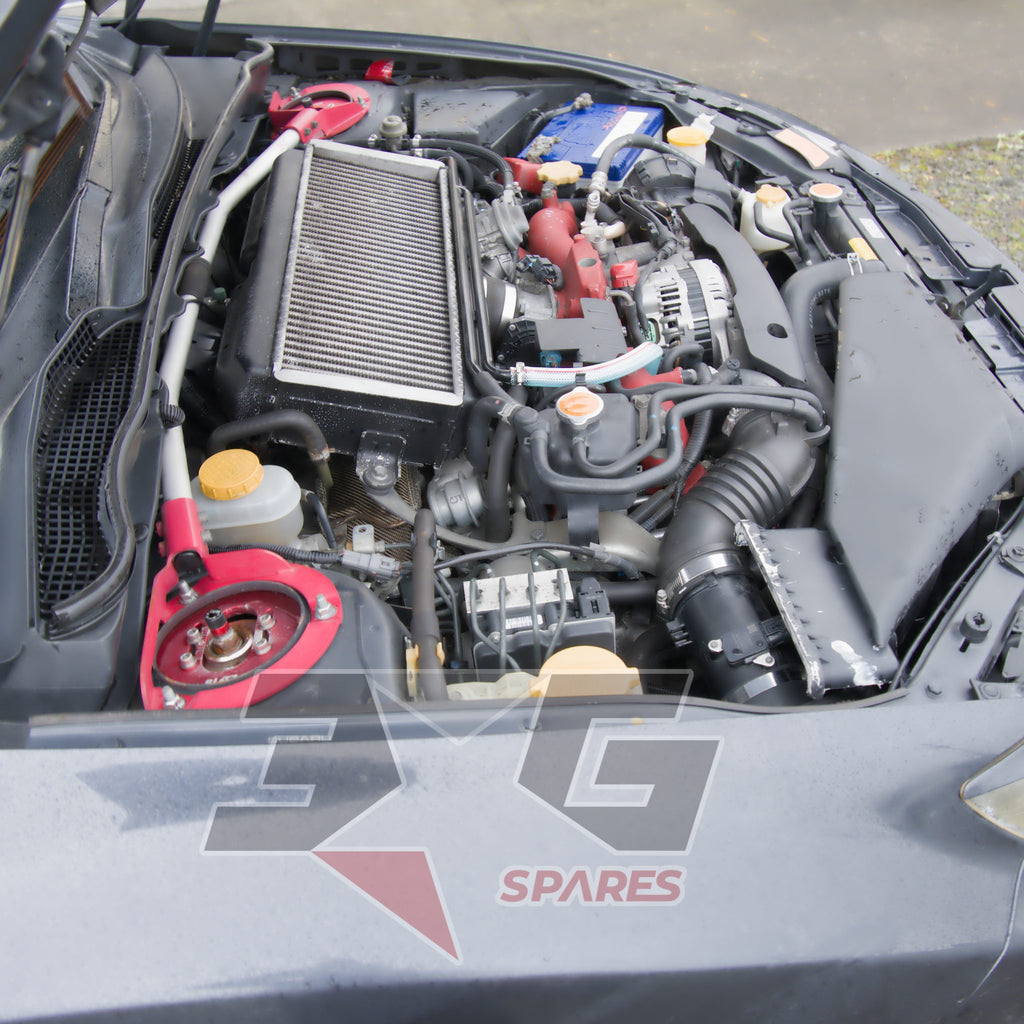

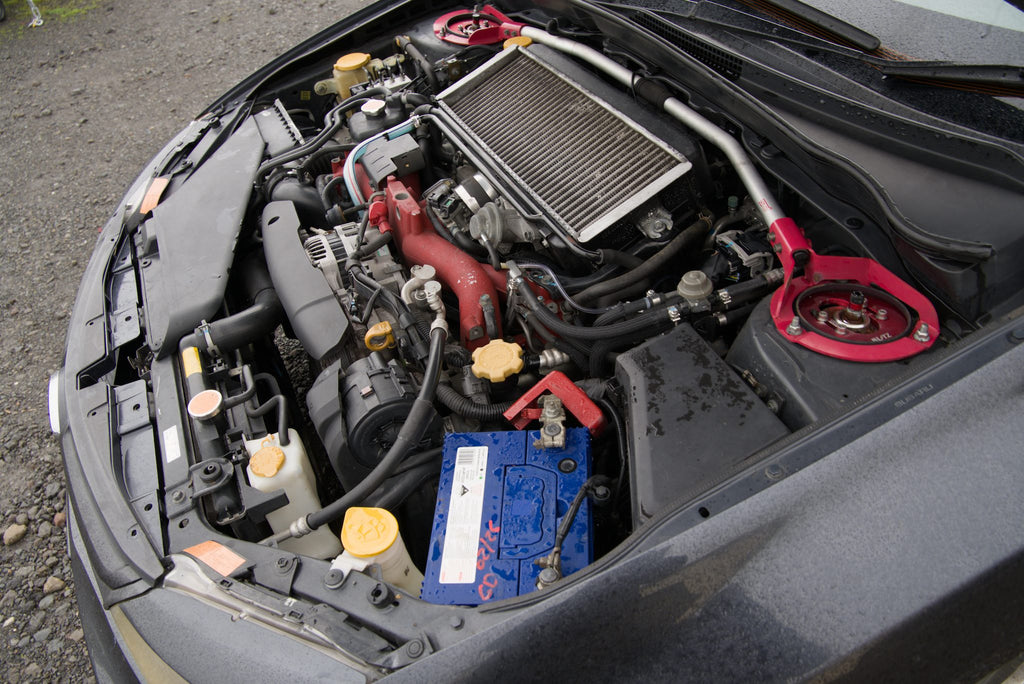

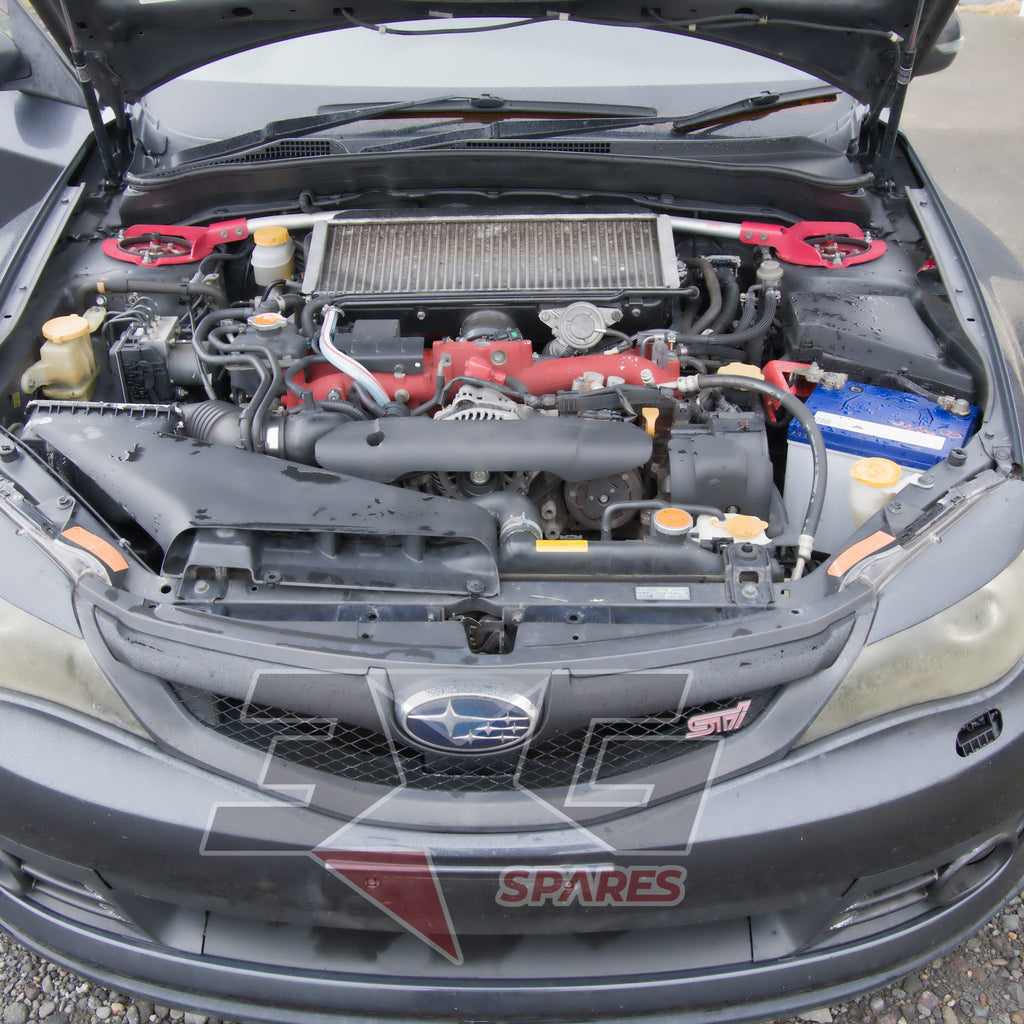

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line engine bay EJ257 TMIC inlet manifold 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line engine bay EJ257 detail 2009-2014 - 3GSpares NZ

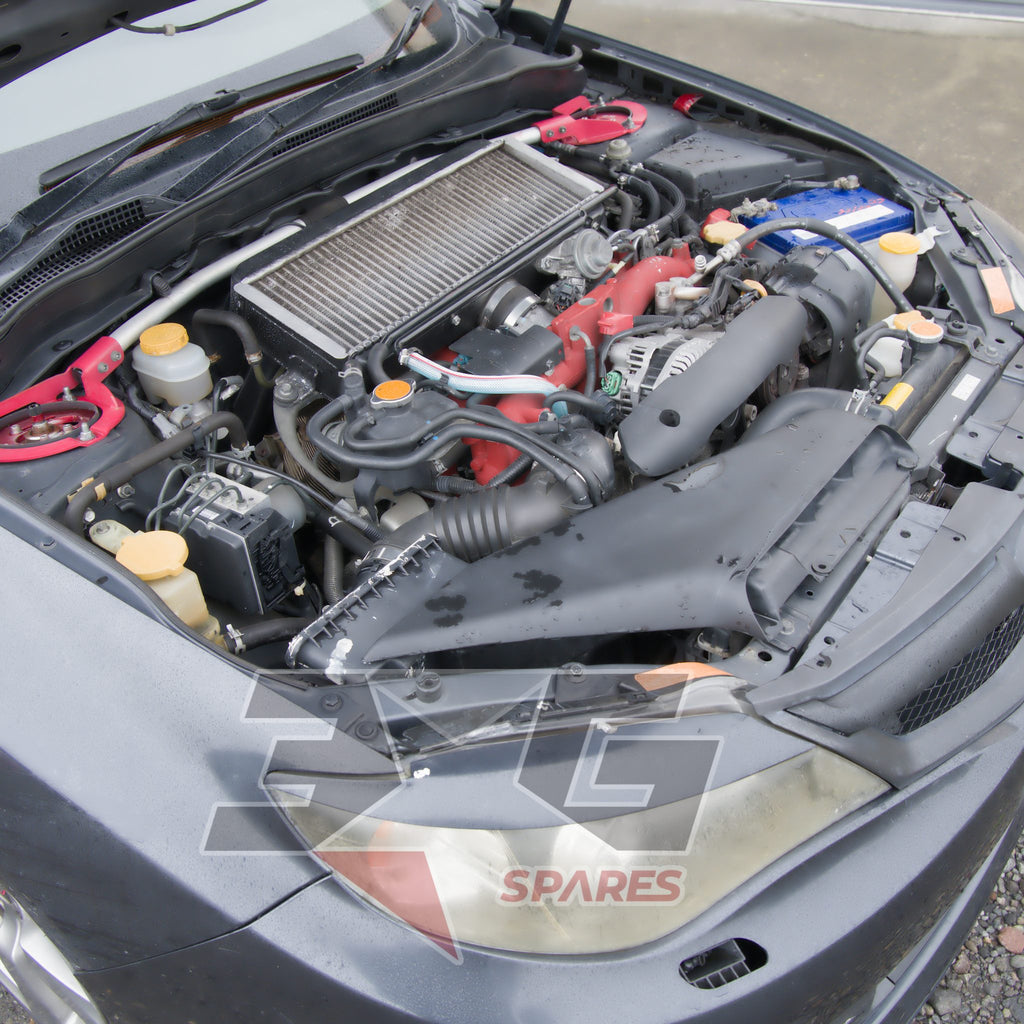

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line engine bay overview 2009-2014 - 3GSpares NZ

Subaru GRF GRB GVB GVF Impreza WRX STi A-Line engine bay turbo intake side detail 2009-2014 - 3GSpares NZ

Estimate shipping cost

Country

This quoter only gives an approximate price to your area, an exact price will be shown at the checkout

PARTING Subaru GRF Impreza WRX STi A-Line Parts EJ257 E-5AT TG5D8CL2AA 159,000km 09-14

Sale
Regular price $1.00

Part Number

Wrecking or parting out June 2009 GRF chassis Subaru Impreza WRX STi A-Line at 3GSpares, Stratford, New Zealand. Parts Request form ↓

Parts Status

The below parts have been allocated to another build and are not available. All other parts are available — enquire via the request form below or browse individual listings.

Brembo brakes front & rear
Blitz ZZ-R coilovers
5×114.3 hubs
Steering rack & power steering pump
Steering wheel
Front axles
STi rear pillow ball lateral links
STi front lower subframe bracing.

Condition on arrival

Insurance write-off due to water ingress seems like cowl and blower motor area entry, cabin marginally damp on arrival.
No significant mechanical issues from the water event. Car started, ran and drove on arrival.

Engine compression tested at operating temperature and subsequently parted out see Vehicle Specifications for results.

Missing items: RH front guard garnish trim with STi badge, both front guard liners, front under tray. All parts are removed and sold individually. Availability changes as parts sell.

Vehicle Specifications

Engine: EJ257 - 2.5L DOHC AVCS turbo - parted out. Compression warm: cylinders 1, 3, 4 at 146–148psi, cylinder 2 at 130psi (ring wear #2 confirmed via leakdown)
Turbocharger: VF48 near new by the looks
Gearbox: TG5D8CL2AA E-5AT electronic 5-speed automatic tested good
Odometer: 159,000km
Exterior colour: 61K — Dark Graphite
Interior trim: G60
Option code: 3DC

Modifications When Arrived

Blitz ZZ-R Spec-C coilovers

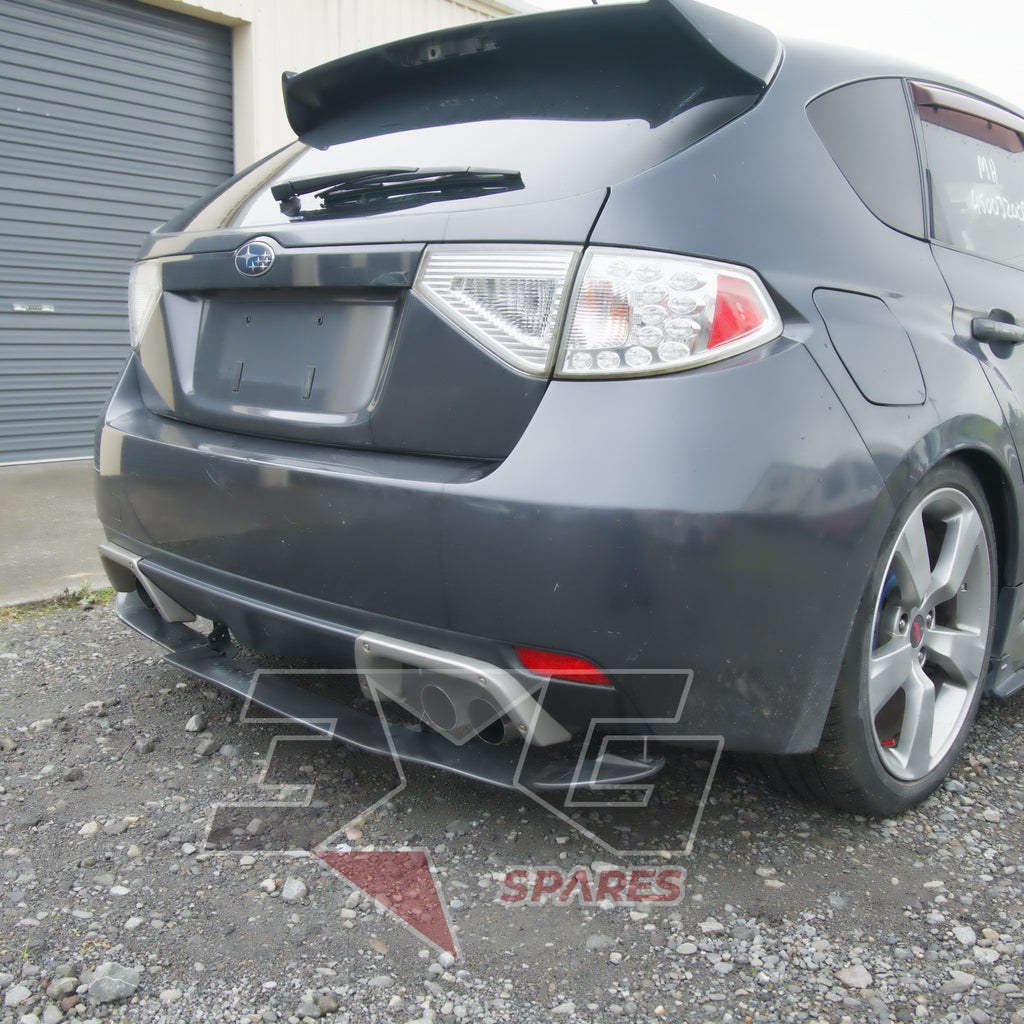

STi R205 rear diffuser - ST96050ZR200 - will make repairs prior to sale

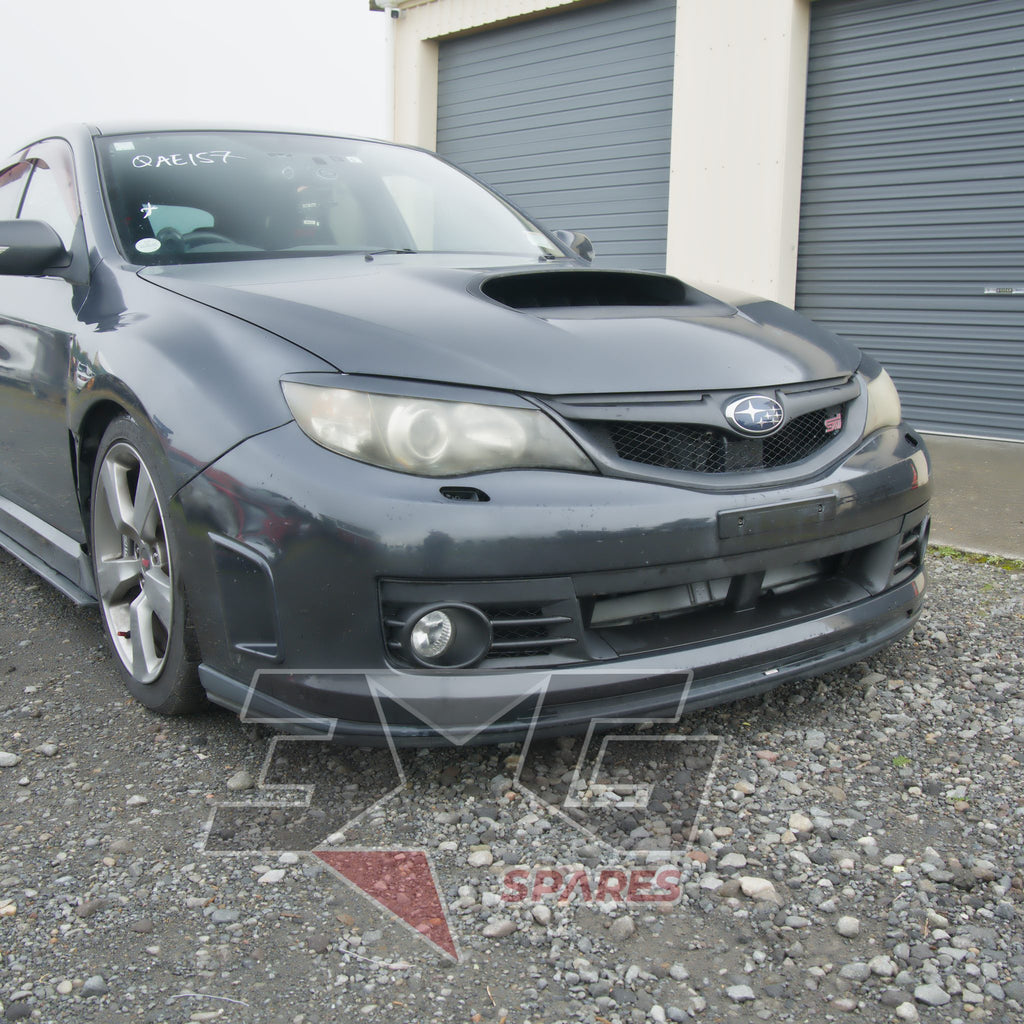

STi front under spoiler lip - pre-facelift Applied A/B fitment- will make repairs prior to sale
STi side skirt extensions pair - ST96030ZR020 - will make repairs prior to sale
STi flexible front upper strut brace
STi rear pillowball lateral links
STi front lower subframe brace & flexible lower arm bar

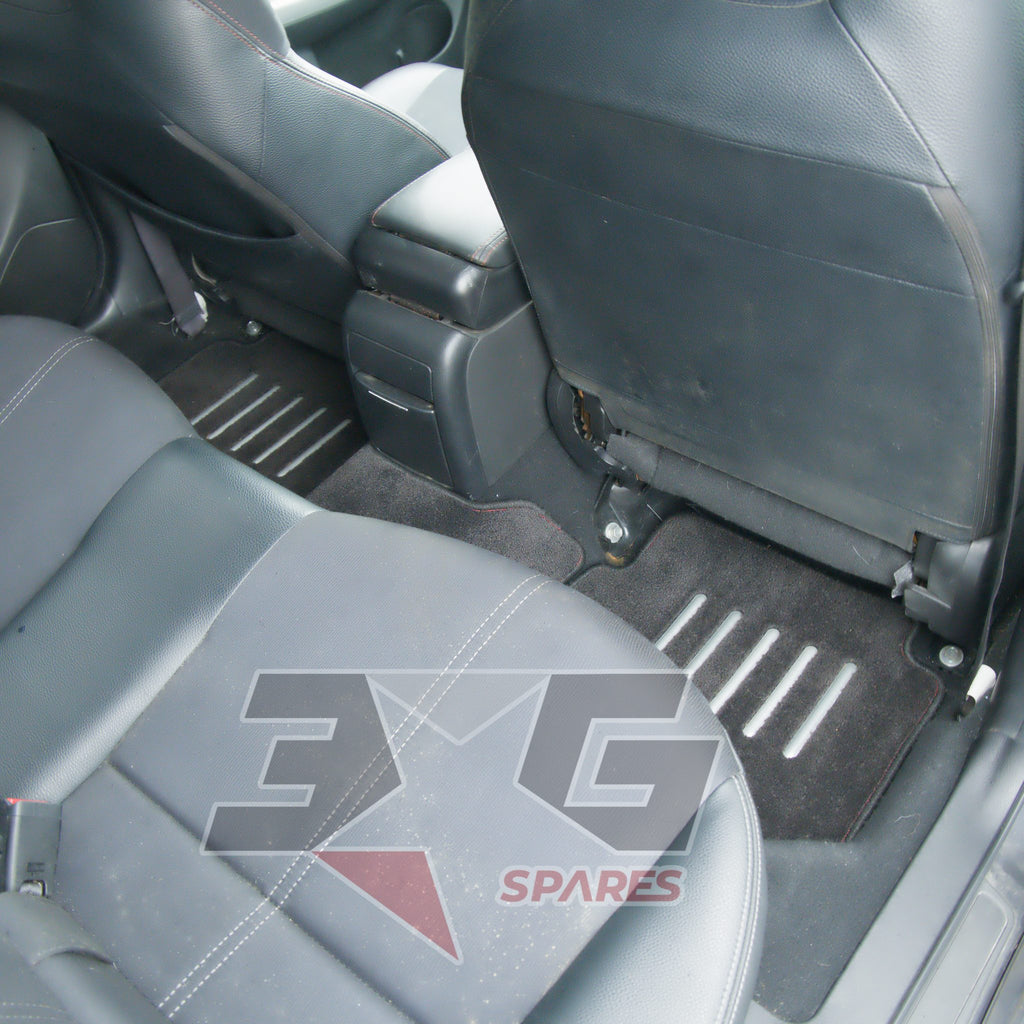

JDM factory option OE boot floor mat
Optional auto wipers & headlights
Aftermarket headlight eyelids

Factory Build Data

This vehicle is for parts only. To request a specific part, please fill out the form below:

Grade	WRX STi A-Line	Destination	JDM
Body	5-door hatchback	Engine	EJ257HC2LE
Transmission	TG5D8CL2AA	Gear Shift	Automatic (floor)
Doors	5	Colour Code	61K — Dark Graphite
Trim Code	G60	Option Code	3DC

Vehicle Walk-Around

Walk-around video coming soon.
